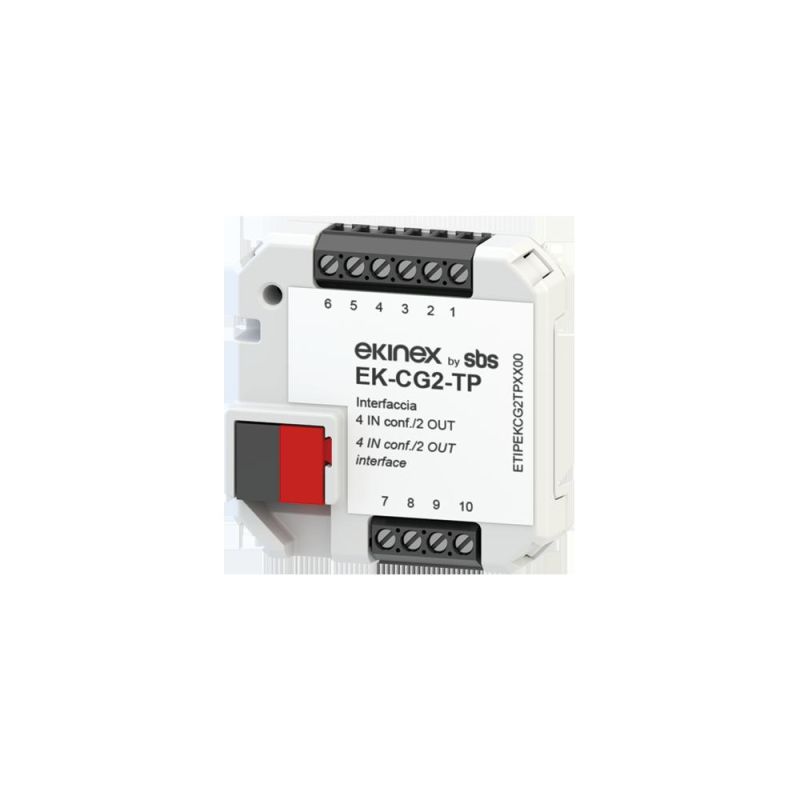

EKINEX EK-CG2-TP Universal interface (4 IN conf. DI or NTC/4 OUT) with thermostat function

Universal interface (4 IN conf. DI or NTC/4 OUT) with thermostat function The Ekinex® EK-CG2-TP universal interface is a KNX device that can be used as an input and/or output. The device has 4 configurable inputs and 4 control outputs to drive low-power LEDs. The

• inputs can be configured individually to connect to the KNX bus: traditional switches, buttons or sensors (not natively communicating on the KNX bus) or binary signals made available by other devices to command and control KNX bus functions;
• passive temperature probes (NTC 10 kΩ at 25°C). The value of the temperature of the ambient air mass, measured by the probes, can be sent on the bus or used for climate regulation of a room or an area using the integrated thermostat function.

The polling voltage of the input channels is produced inside the device. The device has an integrated KNX bus communication module and is made for recessed wall mounting or on 35mm profile rail using a support. Power is supplied via the KNX bus and no auxiliary power is required.
