EELECTRON BI08F01KNX DIN MODULE 8 DIGITAL INPUTS

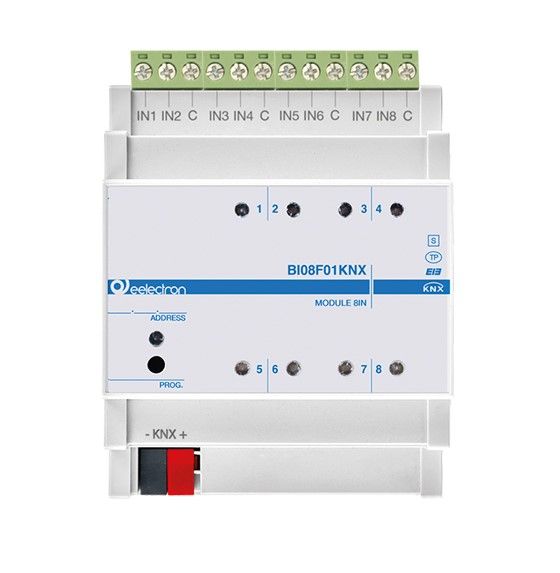

<p/the Eelectron BI08F01KNX device is a universal DIN module equipped with 8 digital inputs for interfacing clean contacts, such as sensors, buttons and other similar devices. This module is designed to be integrated into KNX-based automation systems.

Key Features

The 8 inputs of the BI08F01KNX can be configured to send on/off commands, brightness adjustments, shutter drives, scene recalls and sequences on the KNX bus. Each input can be configured for long or short distances.

Counting Functionality

The module includes a pulse counter function to count the ignitions of inputs configured as digital at a short distance. An LED on the front plate indicates the status of each input.

Specialized Configurations

Two of the inputs can be configured as “smart sensors” for connecting plug-in sensors such as the SM03E01ACC (which includes a temperature sensor and a CO2 sensor) and the SM03E02ACC (which includes a temperature sensor and a VOC sensor for measuring indoor air quality and equivalent CO2).

In addition, the inputs can be configured as analog for connecting NTC temperature probes (such as the TS01A01ACC and TS01B01ACC probes), allowing temperature measurements to be sent to the bus or to manage a complete thermostatic module.

Logic and Algorithms

The module has 10 logical blocks for implementing simple logical expressions with logical or threshold operators, or complex expressions with algebraic and conditional operators. Predefined algorithms are available for proportional control of temperature and humidity, as well as for calculating the dew point.
