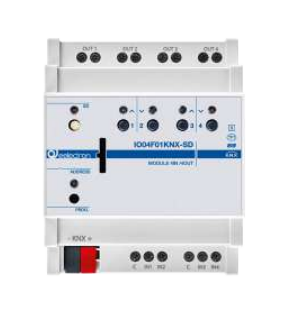

EELECTRON IO04F01KNX UNIVERSAL DIN MODULE 4 IN / 4 OUT PLUS
- MT Code
- ELC_IO04F01KNX
- Manufacturer Code
- IO04F01KNX
- Brand
- EELECTRON
Device IO04F01KNX is a DIN rail EIB / KNX actuators with 4 relay outputs that can be configured as:
– 4 outputs for light / load control
– 4 channels for valve in PWM (solenoid actuators)
– 2 channels for roller shutter / venetian control
– 2 channels for 3-point valve control
– 1 fan coil actuators 2-pipes
The device also includes 4 inputs that can be connected to pushbuttons, switches, or be configured as outputs to activate individual signalling LEDs (eelectron code LD00A01ACC / LD00A11ACC) and can be used for on / off, dimming, shutters or venetian blinds / scenarios, sequences, step-by-step commands, etc. 4 inputs (of the 16) are configurable as analogue for the connection of NTC temperature probes (see probes eelectron code TS00A01ACC / TS00B01ACC) with which to send 4 temperature measurements on the bus and manage a simple on / off controls (e.g. thermo furniture).
Codice Produttore | IO04F01KNX |
---|---|
Brand | EELECTRON |
