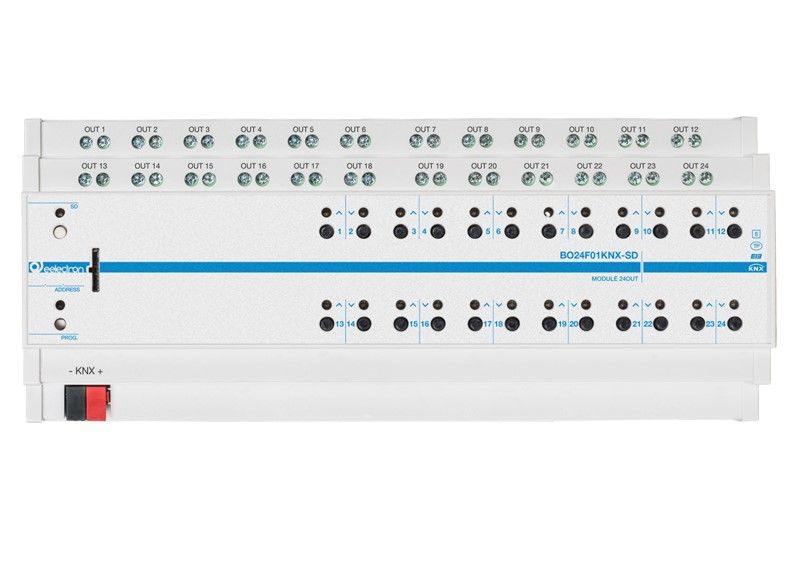

EELECTRON BO24F01KNX-SD UNIVERSAL DIN MODULE 24 OUT PLUS + SD CARD

The EELECTRON BO24F01KNX-SD device is a 24-channel KNX actuator designed to be mounted on a DIN rail, ideal for building automation applications based on the KNX protocol.

Key Features

This actuator integrates 24 16A-230V AC relay outputs, which can be configured in different modes to meet specific control needs:

• 24 outputs for controlling lights and loads
• 24 channels for controlling PWM valves (solenoids)
• 12 channels for controlling shutters and blinds
• 12 channels for 3-way valve control
• 6 2-tube fan coil actuators or 4 4-tube fan coil actuators

Special Configurations

It is possible to combine 3, 4 or 5 relays with logical interlock for the control of 4-tube or 3-speed fan coils. In addition, relay groups (up to 8) can be combined for special functions using logical interlocking.

Scheduling and Recovery Features

The BO24F01KNX-SD version includes a microSD card reader, which allows you to save the device's programming and restore it to an identical device. This function avoids the need for field programming and allows a quick recovery in the event of a fault.

The device is part of the EELECTRON range of completely Made in Italy products, designed for residential, hotel and building applications, with a focus on energy savings and intelligent building automation.
