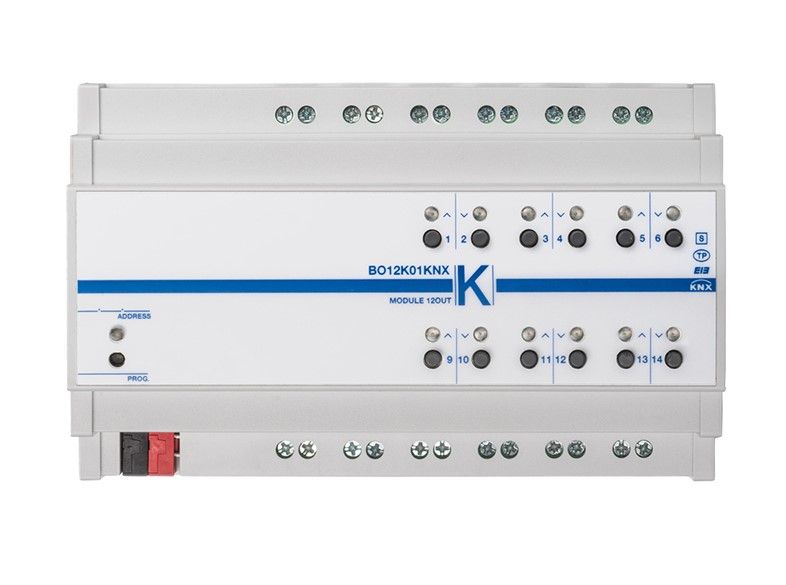

EELECTRON BO12K01KNX UNIVERSAL DIN MODULE 12 OUT

The EELECTRON BO12K01KNX device is a multifunctional DIN actuator designed to meet the control and management needs of various types of electrical loads within residential and commercial environments.

Key Features

This actuator has 12 relay outputs from 16A - 230V AC, making it highly versatile for different applications.

Possible Configurations

• 12 outputs for controlling lights and electrical loads
• 12 channels for PWM valve control
• 6 channels for controlling shutters and blinds
• 6 channels for 3-way valve control
• 3 2-tube fan coil actuators or 2 4-tube fan coil actuators

Special Features

It is possible to combine 2 or 3 relays with logical interlock for the control of 4-tube or 3-speed fan coils, or combine groups of relays (up to 6) for special functions with logical interlock.

Logic Blocks and Programming

The device includes 8 logical blocks that allow you to create simple expressions with logical or threshold operators, as well as complex expressions with algebraic and conditional operators.

Communication Interface

The BO12K01KNX actuator integrates the KNX communication interface, ensuring efficient and secure communication with the KNX Data Secure protocol.

Version with microSD card reader

The BO12F01KNX-SD version includes a microSD card reader, which allows you to save the device's programming and restore it to an identical device, avoiding field programming or allowing a quick recovery in the event of a failure.
