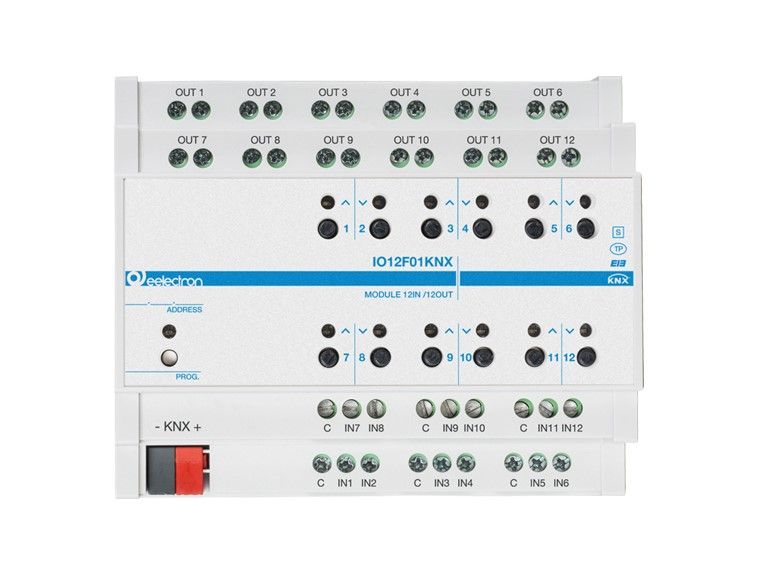

EELECTRON IO12F01KNX-SD UNIVERSAL DIN MODULE 12 IN/12 OUT PLUS + SD Card

The EELECTRON IO12F01KNX-SD universal DIN module is a versatile and highly configurable device, designed to meet the needs of control and automation in home automation and building automation.

Key Features

This KNX actuator integrates 12 16A-230V AC relay outputs, which can be configured in different ways to adapt to various applications:

• 12 outputs for controlling lights and loads
• 12 channels for PWM valve control
• 6 channels for controlling shutters and blinds
• 6 channels for 3-way valve control
• 3 2-tube fan coil actuators/2 4-tube fan coil actuators

In addition, it is possible to combine up to 6 relays with logical interlock for special functions or combine 2 or 3 relays for the control of 4-tube/3-speed fan coils.

Inputs and Configurations

The device has 12 inputs that can be connected to buttons, switches or configured as outputs to activate individual signal LEDs. These inputs support on/off commands, dimming, control of shutters and blinds, scenarios, sequences and step-by-step commands.

• 4 inputs configurable as analog for connecting NTC temperature probes, allowing 4 temperature measurements to be sent on the KNX bus.
• Input 2 can be enabled as a thermostat, managing 2 stages with integrated PI controller for controlling heating and cooling equipment.
• It is possible to enable 3 complete thermostat modules combined with inputs 1, 2 and 7.

Other Features

The IO12F01KNX-SD version includes a microSD card reader, which allows you to save the device's programming and restore it to an identical device, avoiding programming in the field or allowing a quick recovery in the event of a failure.

The device is configurable through the ETS® application program and can communicate with the KNX Data Secure protocol, ensuring high security and compatibility.

Applications

The IO12F01KNX-SD module is ideal for residential, hotel and building applications, offering smart home automation solutions for energy savings in buildings.
