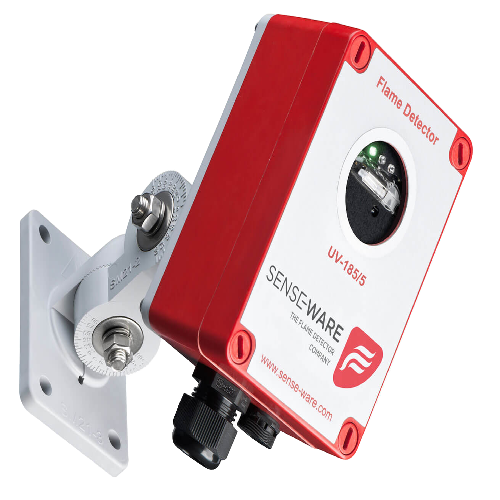

INIM FIRE UV-185/5 Ultraviolet flame detector. For internal use
- MT Code
- INM_UV-185/5
- Manufacturer Code
- UV-185/5
- Brand
- INIM FIRE
Ultraviolet flame detector. For internal use
The UV-185/5 ultraviolet flame detector allows you to intercept flames produced by hydrocarbons or deriving from hydrogen within the ultraviolet spectrum with a 90° cone of vision.
Designed for both indoor and outdoor applications, for ATEX type 2 or non-ATEX classified zones, the UV-185/5 detector is designed to ensure a high level of immunity to false alarms.
Main Features: high immunity to false alarms - triple infrared detector - alarm relay and fault relay - 4-20 mA output
Technical specifications: Supply voltage: 10 - 28 Vdc - Consumption: 25 to 40 mA - IP class: IP65 - Range of view: 0.09m² n-heptane at 23m - Sensitivity: Class 2 (EN54-10) - Coverage angle: 90° cone - Response spectrum: 185 - 260 nm - Operating temperature: -25° C to + 70° C
| Codice a barre | 8000002582638 |
|---|---|
| Codice Produttore | UV-185/5 |
| Brand | INIM FIRE |
