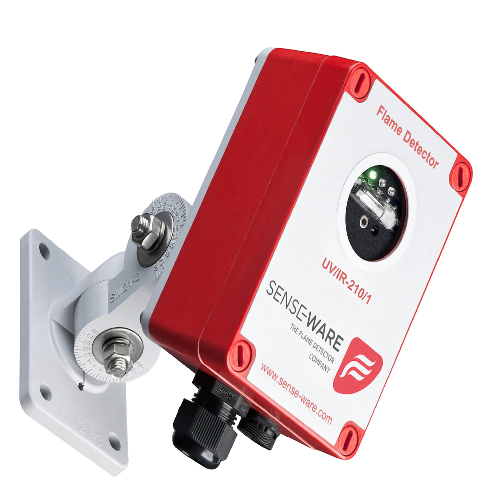

INIM FIRE UV/IR-210/1 Ultraviolet and infrared flame detector

INIM FIRE UV/IR-210/1 Ultraviolet and infrared flame detector

MT Code
INM_UV/IR-210/1
Manufacturer Code
UV/IR-210/1
Brand
INIM FIRE
INIM FIRE
extra sconto di benvenuto
Description

Ultraviolet and infrared flame detector

The UV/IR-210/1 flame detector is designed to rapidly intercept flames deriving from the combustion of hydrocarbons and hydrogen through the combined action of ultraviolet and infrared rays.
The simultaneous detection of radiant energy on behalf of UV and IR sensors triggers the fire hazard warning and ensures a high level of immunity to false alarms caused, for example, by solar radiation.
Suitable for ATEX type 2 zones or areas NOT classified ATEX, the device is equipped with a GRP (fiberglass) case

Main features: high immunity to false alarms - triple infrared detector - alarm relay and fault relay - 4-20 mA output

Technical Specifications: Supply voltage: 10 - 28 Vdc - Consumption: 25 to 40 mA - IP class: IP65 Range of view: 0.09m² n-heptane at 23m - Sensitivity: Class 2 (EN54-10) - Coverage angle: 90° cone - Response spectrum: UV: 185 - 260 nm/IR: 2.7 μm - Operating temperature: -25° C to + 70° C

Data Sheet
Codice a barre 8000002582647
Codice Produttore UV/IR-210/1
Brand INIM FIRE
