ELMO TRES01485 TRES01485 9.9 differential frequency detector
- MT Code
- ELM_TRES01485
- Manufacturer Code
- TRES01485
- Brand
- ELMO

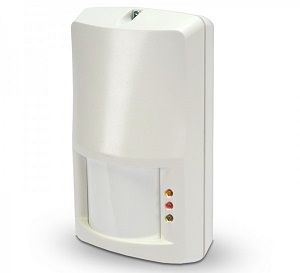

TRES01485 9.9 GHz differentiated frequency detector
The TRES01485 volumetric detector is a triple technology bus sensor (MW + 2IR) that can be connected directly to an RS485 serial line. Thanks to this feature, TRES01485 allows a considerable reduction in field devices (concentrators) and is programmable and manageable directly via software. TRES01485 offers coverage of up to 15 meters and is equipped with the functions of active anti-blinding on the IR section, anti-masking on the MW section, anti-slip and anti-sneak. One of the strengths of this detector is the use of a double digital IR that, combined with the MW section, achieves very high immunity to disturbances and detection accuracy. The detector generates an alarm even when disoriented thanks to the presence of a high-sensitivity accelerometric sensor with 2-axis operation. The discreet and sober design, the small size and the possible mounting with a joint facilitate installation both on the wall and at an angle in any type of environment. TRES01485 is certified IMQ-alarm EN50131-2-4
grade 3 environmental class IICodice a barre | 8000002671309 |
---|---|
Codice Produttore | TRES01485 |
Brand | ELMO |
MT TRES01485 2017 12
|
1.2 MB |
