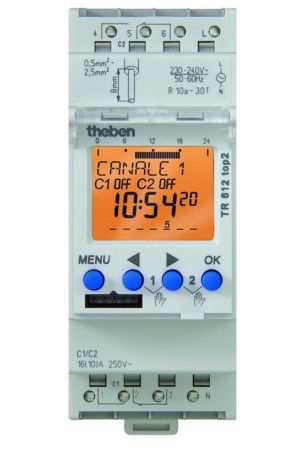

THEBEN 6121100 TR 612 TOP2 120V AC

 description

• Digital timer with weekly program
• DuoFix spring-loaded plug-in clamps
• For 2 conductors each
• Wire or litz wire (with or without ferrule)
• Wire diameter: 0.5 - 2.5 mm²
• Control button for disconnecting the plug connection
• Text-based programming on the display
• Date and time preset
• Fully operable without mains connection
• 56 memory locations
• Interface for OBELISK top2 memory stick (PC programming)
• 2. pluggable circuit program
• Copying programs
• Program backup
• 10 years power reserve (lithium battery)
• Zero-cross switching for relay-saving switching and high lamp loads (not for 24 V devices)
• ON-OFF switching times
• Switch preselection
• Switching continuously ON/OFF
• Integrated operating hours counter
• Reset option
• Service function for monitoring maintenance intervals
• Holiday program
• Display lighting (can be switched off)
• PIN coding
• Automatic summer/winter time changeover
• Can be deactivated
• Switching rules for Europe, US and other countries are already saved
• Own changeover rule or changeover on fixed date can be selected
