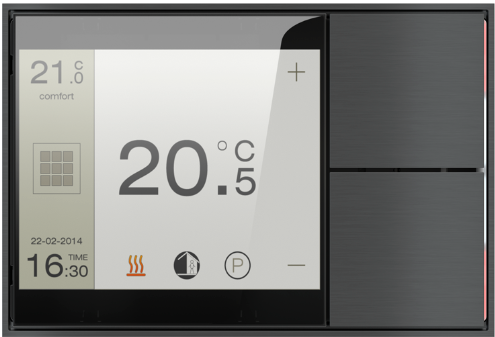

EKINEX EK-EF2-TP-CN Touch&See control and display unit with 2-channel button

Touch&See control and display unit with 2-channel button

Touch&See Ekinex® is a KNX device for the command, control and display of bus functions. By means of the touch-screen and the graphic page user interface, it is possible to command and control KNX actuators in a simple and intuitive way, view information from KNX actuators and sensors and perform the function of room thermostat for a maximum of 8 zones independent; one temperature value can be measured by the integrated sensor, while the other values ​​can be received from the bus. The integrated 2-channel button also allows the on/off control of utilities, the dimming of lighting devices, the control of motorized drives for roller shutters or other programmable command and control functions. The signal LEDs can be chosen in the color combinations blue/green or white/red. The device has an integrated KNX bus communication module and is designed for mounting in a wall recessed box; it is powered via the KNX bus and additionally requires a 30 Vdc auxiliary power supply.
