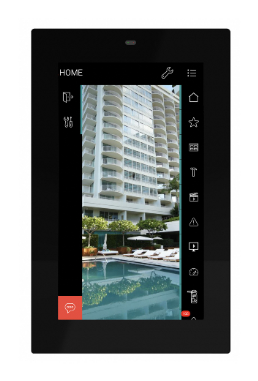

EELECTRON VS05H10WEB HORIZONE TOUCH PANEL 5 inch - BLACK

<p_The EELECTRON VS05H10WEB product, known as Horizone Touch Panel 5", is an innovative device designed for the automation of buildings and homes, particularly suitable for the hotel and residential market.

Technical characteristics

This touch panel has dimensions of 96 x 96 x 36 mm, making it compatible with British, German or Italian 2-module built-in boxes.

Power supply and connections

The power supply is via EIB/KNX bus cable with a voltage between 21 and 32 V DC. The rear connections include digital inputs for dry contacts with a maximum cable length of 10 meters (braided cable), and analog inputs for NTC temperature probes, with specific codes TS01A01ACC (range from -20°C to +100°C) and TS01B01ACC (range from -50°C to +60°C), and a maximum cable length of 20 meters (braided cable).

Functionality

The device is equipped with a capacitive bar with swipe function for implementing programmable KNX functions. In addition, it has a freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus.

Environmental Control

It integrates a two-stage thermostat with integrated PI controller for controlling heating, cooling equipment, valves, 6-way valves and 2- and 4-pipe fan coils.

Logic and Programming

The device includes 32 logical blocks to create simple or complex logical expressions with conditional algebraic operators and predefined algorithms such as proportional temperature and humidity controls or dew point calculation. In addition, it supports 'Virtual Pocket Logic'.

Personalization and Design

The side glass plate allows the customizable and interchangeable backlighting of icons that correspond to the associated functions. The design is minimalist and elegant, making it ideal for high-quality hotel and residential environments.

Applications

• Management of on/off controls, dimmers, shutters and blinds.
• Control of scenes and sequences of objects.
• Integration with magnetic sensors for the management of hotel rooms.

This touch panel is configurable through the ETS® application program and can communicate with the KNX Data Secure protocol, ensuring efficient and safe management of building automation.
