ARCUS-EDS 22414065 Touch_it-AC4 IP65 Aluminum

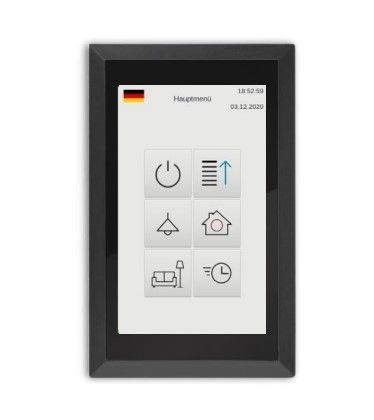

The Arcus-EDS 22414065 touch display, called Touch_IT-AC4, is a versatile and robust control device, designed for home automation and smart home applications.

Display Features

The Touch_it-AC4 is equipped with a 4.3 inch IPS display with a resolution of 800 x 480 pixels and 16 million colors. This display can be mounted both vertically and horizontally, automatically detecting the mounting orientation.

Processor and Operating System

The device is equipped with an 8-core ARM processor, each with a frequency of 1.2 GHz, and uses the Linux operating system. The internal memory includes 8 GByte of flash memory and 1 GByte of RAM.

Functionality and Personalization

The Touch_it-AC4 offers a wide range of functionality, with more than 70 different functions for each element of the GUI. You can configure up to 8 elements per page, each of which can control up to 4 objects. The device supports up to 5 control pages plus an alarm page or 6 control pages.

Background Lighting and Parameterization

The screen backlight is adjustable via LED. The parameterization takes place through ETS5®.

Technical characteristics

• Ambient operating temperature: -20°C to +70°C
• Ambient storage temperature: -20°C to +70°C
• Operating voltage: 21-32 VDC (KNX bus voltage)
• Current consumption: about 10 mA at 24 VDC
• Additional voltage: 9-32 VDC/1.5 W
• Integrated bus coupler
• Commissioning via ETS: Touch_IT_v2.knxprod
• Wall connections: bipolar KNX terminal (red/black) and bipolar AUX terminal (yellow/white)
• External connections: Micro USB connection and Micro SD slot

Protection and Assembly

The device has an IP65 degree of protection, making it suitable for environments exposed to dust and water. The case is made of aluminum and the dimensions are 128 x 80.5 x 10.5 mm (L x H x D).

Integrated sensors

Note: Some versions of the Touch_it-AC4 may include an infrared temperature sensor, but the specific version with code 22414065 does not include it [5>.
