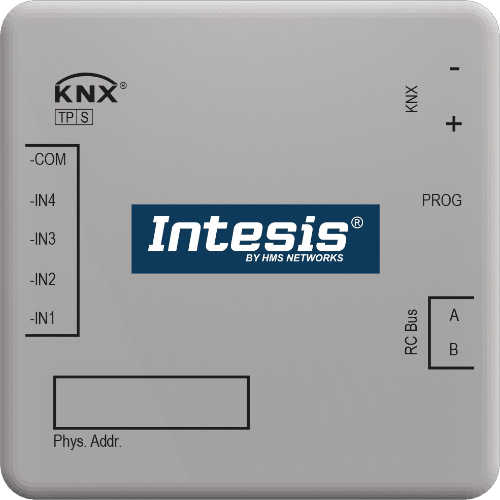

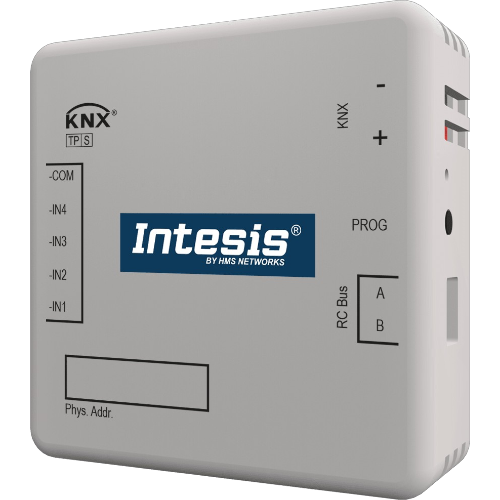

INTESIS INKNXTOS001R000 Toshiba VRF and digital systems with KNX interface with binary inputs - 1 unit
- MT Code
- INT_INKNXTOS001R000
- Manufacturer Code
- INKNXTOS001R000
- Brand
- INTESIS
The INTESIS INKNXTOS001R000 product is a gateway designed to ensure complete bidirectional communication between Toshiba VRF and Digital air conditioning systems and KNX installations.
Key Features
This gateway allows the natural and complete integration of Toshiba air conditioning systems with KNX networks, facilitating the control and management of air conditioning systems.
Communication and Configuration
The INKNXTOS001R000 gateway can be connected directly to the AB bus of the Toshiba air conditioner indoor unit, with or without the Toshiba remote control. The configuration takes place using the standard configuration software ETS (Engineering Tool Software).
Integration of External Devices
The gateway has four potentially free binary inputs, which allow the integration of various external devices such as window contacts or presence detectors. These inputs are configurable via ETS and can be used for switching, brightness adjustment, curtain or shutter control, and other functions.
Energy Saving Features
The gateway includes energy saving features such as the timeout, the window opening function and the occupancy function, which help reduce energy costs. In addition, KNX thermostats can control the air conditioning unit using the thermostat's temperature sensor.
Monitoring and Maintenance
The gateway has an operating hours counter, useful for maintenance purposes. This counter keeps the count even in the event of a reset or failure of the KNX bus.
Technical Specifications
Dimensions and Weight
- Width: 88 mm
- Height: 56 mm
- Depth: 90 mm
- Weight: 70 g
Power supply and assembly
- Input voltage: from the air conditioning unit
- Mounting: wall
- Housing material: plastic
Operating Temperature
- Minimum: 0 °C
- Maximum: 60 °C
Certifications
- CE
- UL
- CB
- UKPSTI
- KNX
Codice Produttore | INKNXTOS001R000 |
---|---|
Brand | INTESIS |
user manual inknxtos001r000
|
1.7 MB |
