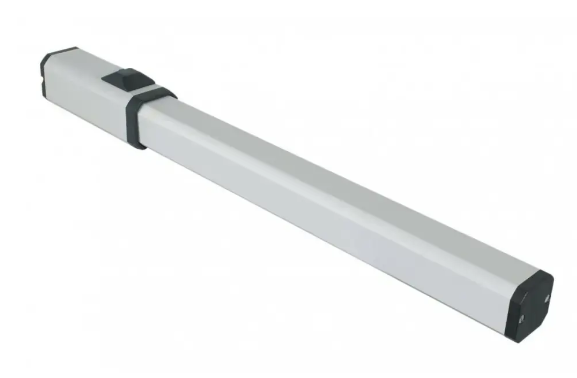

GIBIDI 44200E TOP 441 EVO Hydraulic Operator For Swing Gates

MT Code: GBD_44200E
Manufacturer Code: 44200E
Brand: GIBIDI

Description

For doors up to 6.0 m

230 Vac hydraulic

operators, dedicated to medium and large swing gates and weight. Suitable for both residential and intensive use.

EASY TO INSTALL

TOP is already preloaded and adjusted at the factory, ready for use, no purge valve, no oil to refill. Mounting brackets included

QUIET AND FAST

Extremely quiet. Also available with a fast hydraulic pump for those who want to minimize opening and closing times

TECHNOLOGICAL AND SAFE

TOP is built with a unique technology, vacuum-loading leaves no air residue inside, so no condensation and emulsion. The pump-distributor coupling is without any gasket. A unique system destined to remain unchanged over time

A COMPLETE AND RELIABLE RANGE

From a small residential gate to 6-meter commercial or industrial doors. Special motors for intensive use. Standard or fast speed, reversible or irreversible versions. Only the best, only the TOP.

Use: INTENSIVE

Frequency of use: 55%

Motor supply: 230 Vac - 50/60 Hz

Absorbed power: 190W

Degree of protection: IP65

Rod

speed: 10 mm/s (20 mm/s for the ER/S version)

Max. rod stroke: 425 mm (440 mm for version E) Max. thrust force: 4500 N (3000 N for the ER/S version)

Force adjustment:

HYDRAULICS Speed adjustment: ELECTRONICS ** Hydraulic slowdowns:

YES (NO for version E)

Max. leaf length: 6.0 m *
