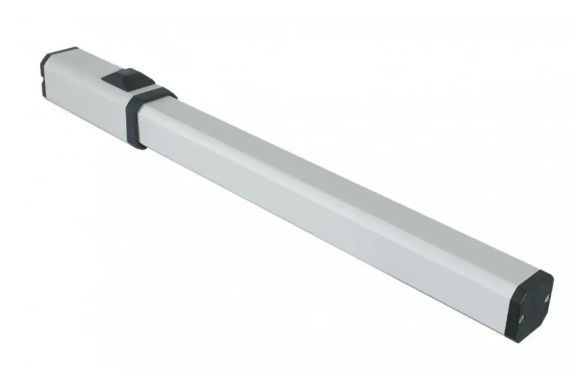

GIBIDI 39200ER TOP 391 EVO Hydraulic Operator For Swing Gates

GIBIDI 39200ER TOP 391 EVO Hydraulic Operator For Swing Gates

MT Code
GBD_39200ER
Manufacturer Code
39200ER
Brand
GIBIDI
extra sconto di benvenuto
Description
For doors up to 4.5 m - fast version with hydraulic slowdowns 230 Vac hydraulic

operators, dedicated to medium and large swing gates and weight. Suitable for both residential and intensive use.

EASY TO INSTALL
TOP is already preloaded and adjusted at the factory, ready for use, no purge valve, no oil to refill. Mounting brackets included
.

QUIET AND FAST
Extremely quiet. Also available with a fast hydraulic pump for those who want to minimize opening and closing times
.

TECHNOLOGICAL AND SAFE
TOP is built with a unique technology, vacuum-loading leaves no air residue inside, so no condensation and emulsion. The pump-distributor coupling is without any gasket. A unique system destined to remain unchanged over time
.

A COMPLETE AND RELIABLE RANGE
From a small residential gate to 6-meter commercial or industrial doors. Special motors for intensive use. Standard or fast speed, reversible or irreversible versions. Only the best, only the TOP.

Use: INTENSIVE
Frequency of use: 55%
Motor supply: 230 Vac - 50/60 Hz
Absorbed power: 190W
Degree of protection: IP65
Rod
speed: 10 mm/s (20 mm/s for the ER/S version)
Max. rod stroke: 265 mm (290 mm for version E) Max. thrust force: 4500 N (3000 N for the ER/S version)
Force adjustment:
HYDRAULICS Speed adjustment: ELECTRONICS ** Hydraulic slowdowns:
YES (NO for version E)
Max. leaf length: 4.5 m *
Operating temperature: -20°C +60°C Shank diameter:
20 mm Lubrication: GBD PH-03 OIL Operator weight
: 8.7 Kg
Data Sheet
Codice Produttore 39200ER
Brand GIBIDI
