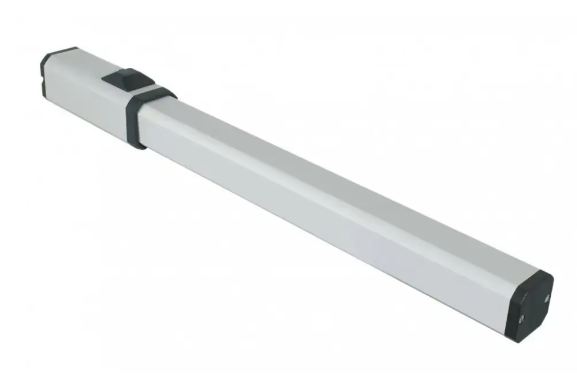

GIBIDI 29200E TOP 291 EVO Hydraulic Operator For Swing Gates
- MT Code
- GBD_29200E
- Manufacturer Code
- 29200E
- Brand
- GIBIDI
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
For doors up to 3.5 m
230 Vac hydraulic operators, dedicated to medium and large swing gates and weight. Suitable for both residential and intensive use.
EASY TO INSTALL
TOP is already preloaded and adjusted at the factory, ready for use, no purge valve, no oil to refill. Mounting brackets included
. QUIET AND FAST
Extremely quiet. Also available with a fast hydraulic pump for those who want to minimize opening and closing times
. TECHNOLOGICAL AND SAFE
TOP is built with a unique technology, vacuum-loading leaves no air residue inside, so no condensation and emulsion. The pump-distributor coupling is without any gasket. A unique system destined to remain unchanged over time
. A COMPLETE AND RELIABLE RANGE
From a small residential gate to 6-meter commercial or industrial doors. Special motors for intensive use. Standard or fast speed, reversible or irreversible versions. Only the best, only the TOP.
Use: INTENSIVE
Frequency of use: 55%
Motor supply: 230 Vac - 50/60 Hz
Absorbed power: 170W
Degree of protection: IP65
Rod speed: 10 mm/s (20 mm/s for the ER/S version)
Max. rod stroke: 265 mm (290 mm for version E) Max. thrust force: 3000 N (2200 N for the ER/S version)
Force adjustment:
HYDRAULICS Speed adjustment: ELECTRONIC ** Hydraulic slowdowns:
YES (NO for version E)Max. leaf length: 3.5 m *
Operating temperature: -20°C +60°C Shank diameter:
16 mm Lubrication: GBD PH-03
OIL Operator weight: 7.7 Kg
Data Sheet
Codice Produttore | 29200E |
---|---|
Brand | GIBIDI |
