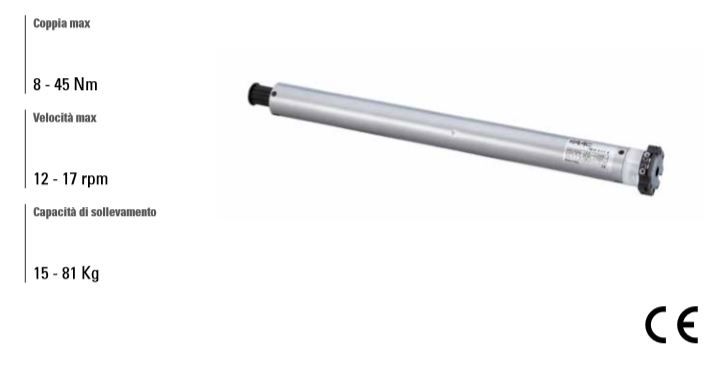

FAAC 130012 TM45 45/12 R 433MHZ TUBULAR MOTOR

TM45 45/12 R 433MHZ TUBULAR MOTOR

TECHNICAL CHARACTERISTICS: Max torque 45 Nm Lifting capacity 81 Kg Max speed 12 rpm Frequency of use 20% Continuous Use Time (ROT) 240 s 230V~ 50Hz mains supply voltage Max power 270 W Max run 16 Motor diameter 45 mm Length with adapter 678 mm Degree of protection IP 44

Lifting capacity means the maximum weight that can be lifted with a 60 mm diameter winding tube including winding coefficient and friction.

The package includes: - tubular motor with integrated receiver (with connection cable length 2.7 m) - ffine-stroke adjustment key - instruction manual
