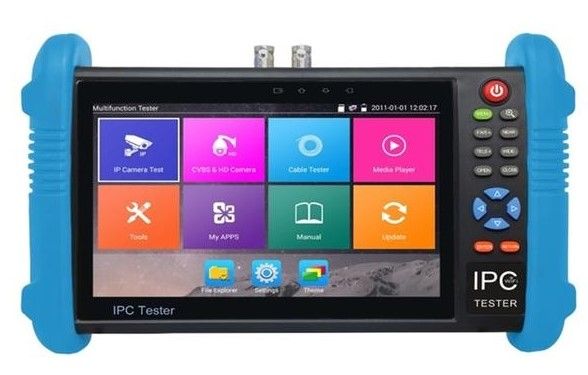

SEK-1R70-600E TKH Skilleye Professional Tester for CCTV
- MT Code
- SKL_SEK-1R70-600E
- Manufacturer Code
- SEK-1R70-600E
- Brand
- SKILLEYE
Professional CCTV Tester, 7 inch Touch Display, 1280x800pxls resolution. Supports analog video input HD-TVI (up to 8MP) / AHD (up to 8MP) / HD-CVI (up to 8MP) / 960H on BNC connector in Loop, NTSC/PAL auto-sensing. It supports IP cameras compatible with ONVIF, RTSP and over 70 proprietary protocols, with resolution up to 8MP and H.264/H.265 compression. PTZ management on RS-485 port, Control Over Coax and IP. 10/100Mbps Ethernet network card with RJ45 connector, 150Mbps WiFi interface with HotSpot capability, supports Static IP addressing or DHCP. Network bandwidth test functionality. FTP Server service on board. 24W PoE output for IP cameras, 12VDC 2A output for cameras, 5VDC/2A USB output. RS-232/485/422 port for telemetry, over 30 protocols supported such as Pelco D/P, Samsung and Panasonic. Audio In/Out. HDMI 1080p Video Input and Video Output. Colored bar video output for monitor testing. LED lamp on board for lighting. MicroSD for on-board recording of video clips and frames, max 32GB (8GB supplied on board); playback function for images recorded on board. MKV/MP4 Multimedia Player with resolution up to 4K. Digital Multimeter for measurements of current, voltage, resistance, capacitance, continuity and diode tests. Multiple pre-installed CCTV Apps, Possibility of installing Apps for Android and Browser for Internet browsing, IP Scanner, Ping tester. Multilingual OSD, Italian included. Lithium battery 7.4VDC 5000mAh. Dimensions 320 x 290 x 98 mm with protective shell.
Codice Produttore | SEK-1R70-600E |
---|---|
Brand | SKILLEYE |
