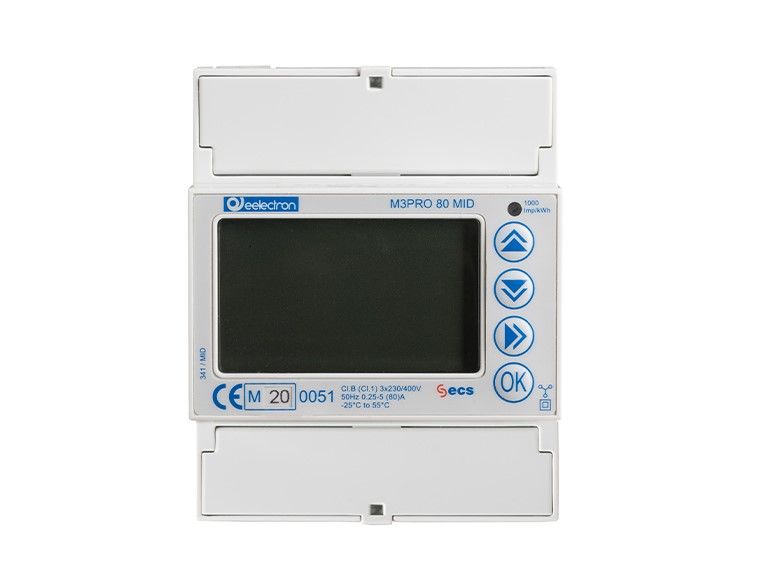

EELECTRON PM30E01IRE THREE-PHASE STATIC ENERGY METER DIRECT CONNECTION 80 A — MID

<p_The EELECTRON PM30E01IRE static three-phase energy meter is a device designed to provide a comprehensive evaluation of three-phase electrical networks. This meter is MID certified, ensuring accuracy and compliance with European standards.

Key Features

• Direct connection with a maximum current of 80 A.
• Current range: 0.25-5 (80) A.
• Measurement of all significant quantities: current (I), voltage (U), power factor (PF), frequency (F), total harmonic distortion (THD%).
• Measure of active and reactive powers, both total and for each phase.
• Measure of imported and exported energy.

Pricing and Communication Features

• Support for 2 tariffs.
• Side IR communication for reading and programming data.
• 2 static S0 outputs for interfacing with other devices.

Installation and Dimensions

• Designed for installation on a DIN rail.
• Compact size for easy mounting in standard electrical boxes.

<p_The PM30E01IRE meter is ideal for industrial and residential applications where a precise measurement and management of three-phase electrical energy is necessary.
