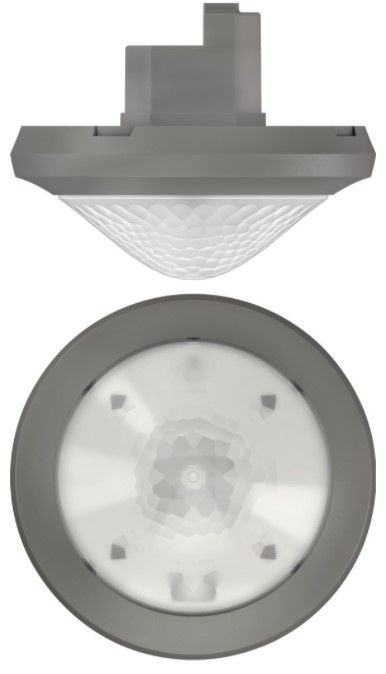

THEBEN 2080521 theRonda S360-100 UP GR

Functional description

• Passive infrared presence detector for ceiling mounting, flush-mounted
• Round detection range 360°, Ø 8 m, (50 m2) at 3 m mounting height
• 1 channel light (relay 230 V)
• Automatic presence- and brightness-dependent control for lighting
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
• Operation as fully or semi-automatic, switchable
• Brightness switching value adjustable, teach-in function
• Shortening the follow-up time for short-term presence (short-term presence)
• Connection option for buttons or switches for manual switching with automatic recognition “ButtonSwitch”
• Pulse function for staircase lighting timer
• Switch-on delay and follow-up time adjustable
• Restriction of the detection area using clips
• Adjustable sensitivity
• Immediately ready for use thanks to factory presetting
• An optional remote control is required to change the values ​​and settings
• Test operation to check function and detection area
• Ceiling installation in flush-mounted box
• Ceiling construction possible with AP frame
• User remote control theSenda S, service remote control theSenda P, universal remote control theSenda B (optional)
