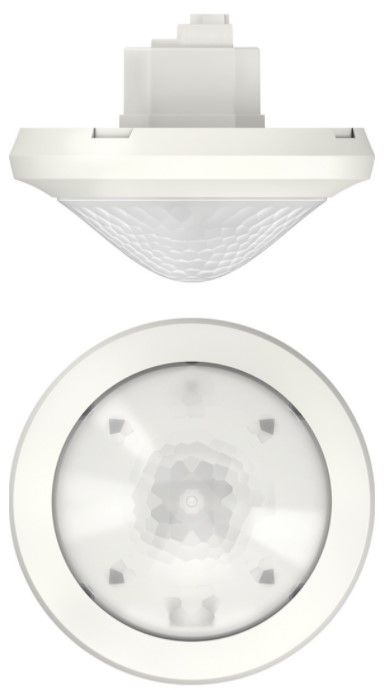

THEBEN 2089001 THERONDA P360 KNX UP GR

Description of operation

- KNX Passive infrared presence detector for ceiling mounting

- 360° round detection range, up to Ø 24 m (452 m2)

- 2 light channels and 2 presence channels

- 2 light channels C1, C2 with 1 light measurement

- 2 individually adjustable presence channels with offset

- Adaptive 1-channel light metering

- Measurement in mixed light suitable for LED, fluorescent lamps (FL/PL/

ESL), halogen and incandescent lamps

- Operation switchable between fully automatic or

semi-automatic

- Operation with switching or constant light regulation with

standby

- Adjustable lighting with switch operation with

stand-by function

- Brightness switching value or value programmed with lux

adjustable via parameters, object or remote control

- Teach-In of the brightness switching value or value

scheduled

- Setting the local correction factor for adjusting the

brightness measurement

- Light tail time adjustable via parameters, object or

remote control

- Possibility to set arming delay and presence queue time

- Adjustable detection sensitivity

- Self-learning queuing time

- Reduction of queuing time in case of short presence

- Scene functionality

- Test mode for verifying the function and detection range

- Parallel connection of several detectors possible in Master/Slave

or Master/Master

- Possibility of limiting the detection range via segments

- Manual control via telegram or remote control

- Ceiling mounting in recessed box

- Ceiling mounting possible with visible frame

- User remote control and, management remote control (optional)
