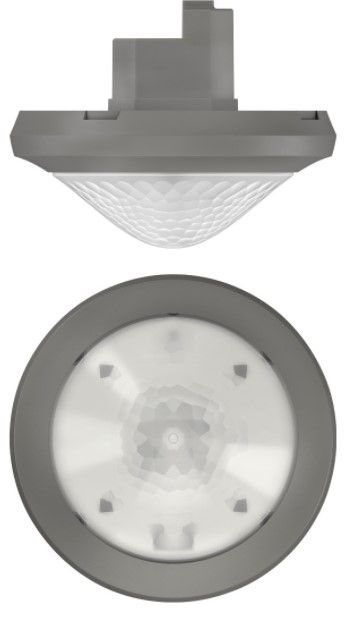

THEBEN 2080041 theRonda P360-110 DALI UP GR

Description of operation

- Passive infrared presence detector for ceiling mounting,

DALI-2 certified

- 360° circular detection range (up to Ø 24 m)

- Limitation of the detection range with cover clips

- Automatic lighting control with constant light regulation

or switching operation

- Adjustable lighting in with and without switching operation

daylight influence

- Orientation light (stand-by functionality)

- Simple commissioning without programming group addresses

(DALI-2 Broadcast)

- DALI-2 technology according to IEC 62386 Parts 101 and 103

- Measurement in mixed light suitable for fluorescent lamps (FL/PL/ESL),

halogen, incandescent and LED lamps

- Adjustment of brightness measurement

- Operation switchable between fully automatic or

semi-automatic

- Default brightness value in lux settable

- Teach-in function via remote control or button

- Self-learning queuing time

- Reduction of queuing time in case of short presence (presence a

short time)

- Adjustable detection sensitivity

- Connection solutions for buttons for regulation and switching

manuals

- Behavior after command keys of your choice

- Scene functionality

- Immediately ready for use thanks to the pre-setting of

factory

- Easily set the energy saving option with the

"eco plus" function

- Test mode for checking the function and detection range

- Expansion of the detection range via master/

slave or master/master

- Protection type IP 54 mounted

- Ceiling mounting in recessed box

- Ceiling mounting possible with exposed frame (optional)

- Management remote control "SendoPro 868-A" (optional)

- Installation remote control "theSenda P" (optional)

- User remote control "theSenda S" (optional)
