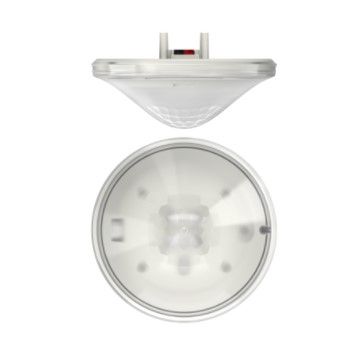

THEBEN 2079000 THEPREMA P360 KNX UP WHITE RIL 360

Function Description

• KNX Passive infrared presence detector for ceiling mounting
• 360° square detection range (up to 100 m2) for safe and simple planning
• 3 light channels and 2 presence channels
• 2 light channels C1, C2 with 2 light measurements and additional channel C3 without influence on brightness
• 2 individually adjustable presence channels
• Adaptive 3-channel light metering
• Mixed light measurement suitable for LED, fluorescent lamps (FL/PL/ESL), halogen and incandescent lamps
• Operation switchable between fully automatic or semi-automatic
• Operation with switching or constant light regulation with stand-by
• Adjustable lighting with switching operation with stand-by function
• Brightness switching value or programmed value with lux adjustable via parameters, object or remote control
• Teach-In of the brightness switching value or programmed value
• Setting the local correction factor for adjusting the brightness measurement
• Light tail time adjustable via parameters, object or remote control
• Possibility to set arming delay and presence queue time
• Adjustable detection sensitivity
• Self-learning queuing time
• Reduction of queuing time in case of short presence
• Scene functionality
• Easier setting of the energy saving option with the new "eco-plus" function
• Test mode for checking the function and detection range
• Parallel connection of several detectors possible in Master/Slave or Master/Master
• User remote control and, management remote control (optional)
• Local surveillance
