WEINZIERL 5312 KNX IO 530

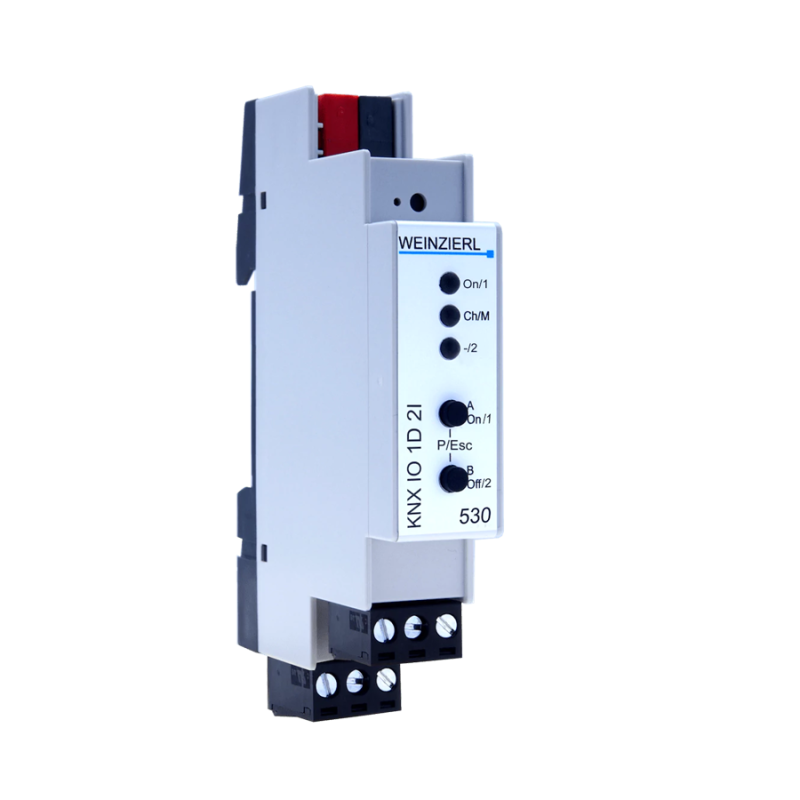

<p/the WEINZIERL 5312 product, also known as KNX IO 530 (1D2I), is a compact dimmer for 230 V~ power supply intended for the control of dimmable lamps.

Key Features

This device is designed to offer a versatile and efficient lighting control solution. It has a dimmable output channel and two binary inputs.

Output Channel (Dimmer)

The dimmer output channel supports phase or phase section control, making it suitable for all 230 V dimmable lamps, such as incandescent lamps, dimmable LEDs and halogen lamps.

The maximum manageable power is 200 W, with a standby power consumption of less than 0.2 W.

Binary Inputs

The two binary inputs can be controlled by conventional switches with an external voltage of 230 V. The inputs must be of the same potential as the output.

Functionality

The dimmer offers various comfort features, including scenes, automatic function, snooze function, stair lighting and sequencer.

User Interface

The device is equipped with two buttons and three multicolored LEDs on the front, which allow local operation and the display of the device status. In addition, there is a KNX programming button with a red LED.

Technical Data

Mechanical Data

• Plastic case
• DIN rail mounting, width: 1 module (18 mm)
• Weight: about 60 g

Connectors

• KNX bus connector (red/black)
• Pluggable screw connector (3-pole) for the dimmer
• Pluggable screw connector (3-pole) for binary inputs

KNX system

• System B device model
• Compatible with ETS 4.2 (or later)

Logical and Timer Functions

The device contains 16 independent logic functions or timers, adding flexibility to control configurations.
