Tent Via Radio sensor, bidirectional & unidirectional

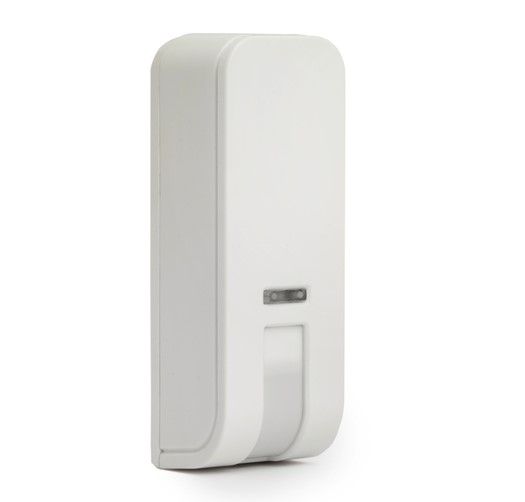

RISCO RWX10680000A Tent Via Radio sensor, bidirectional & unidirectional

MT Code: RSC_RWX10680000A
Manufacturer Code: RWX10680000A
Brand: RISCO

The RISCO Group Bidirectional Radio curtain sensor is designed for indoor use to protect windows and glazed doors. Thanks to the unique Sunlight Protection technology, false alarms are significantly reduced. The sensor can be easily installed on the wall adjacent to the window using the integrated 90° bracket

Features

Selectable coverage from 3m to 6m
Installation height up to 3m
Sunlight Protection: the white light of the sun or headlights is blocked through an exclusive processing of the detected signals
Simple replacement of batteries housed in a dedicated compartment Includes a
90° bracket for mounting on both sides of the window
Real temperature
compensation Technical Specifications Compatible with monodirectional radio systems

and

RISCO bidirectional (selectable via micro switch)

Frequency 868.65MHz

Selectable Radio Protocol Mono or bidirectional

CR123 3V lithium battery

life 3 years - common use

Standing

current consumption 8 uA (typical) Operating temperature from -10°C to

40°C Storage temperature from -20°C to 60°C

Dimensions 31.5mm x 35mm

x 98.5mm Integrated 90° mounting bracket for mounting on both sides of the window

Data Sheet
