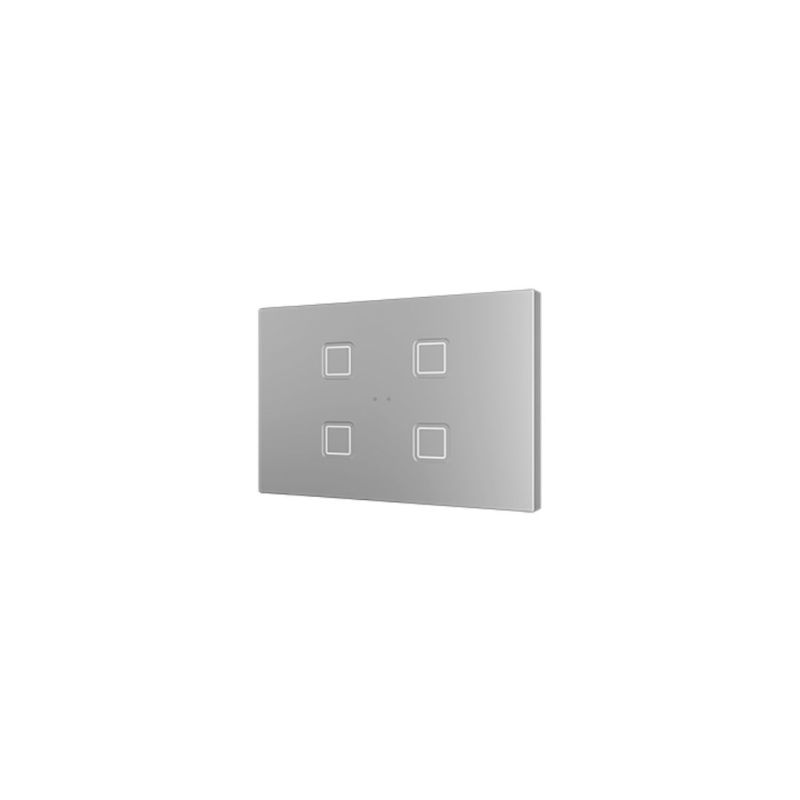

ZENNIO ZVITXLX4S TECLA XL backlit 4-key capacitive touch switch, silver

<p/the ZENNIO ZVITXLX4S product is a capacitive multifunction switch with KNX technology, designed to offer efficient and customizable management of lighting and home automation functions.

Key Features

This switch is available in versions with 4, 6, 8 or 10 buttons, all equipped with customizable icons and backlighting that automatically adapts to ambient light thanks to the brightness sensor.

Sensors and Functionality

The ZVITXLX4S switch is equipped with a proximity sensor for quick start, an internal temperature sensor and a thermostatic function. In addition, it has an indicator light (LED) for each button and a buzzer to confirm the user's actions, which can be deactivated if necessary.

Configuration and Personalization

The buttons can be configured to work individually or in pairs, both in horizontal and vertical orientation. The switch can be locked or unlocked through binary orders or scenes, and has a “Welcome Back” function that sends a signal to the KNX bus when activity is detected after a configurable period of inactivity.

Control functions

• Curtain and blind control with up, down and stop functions.
• Brightness adjustment with increment and decrement functions.
• Light control with on and off functions.
• Sending percentage scale values for checking compatible devices.

Integration and Installation

The ZVITXLX4S switch is compatible with European, British, Italian, Australian and American electrical boxes. The configuration and integration can be managed using the ETS5/ETS6 application.
