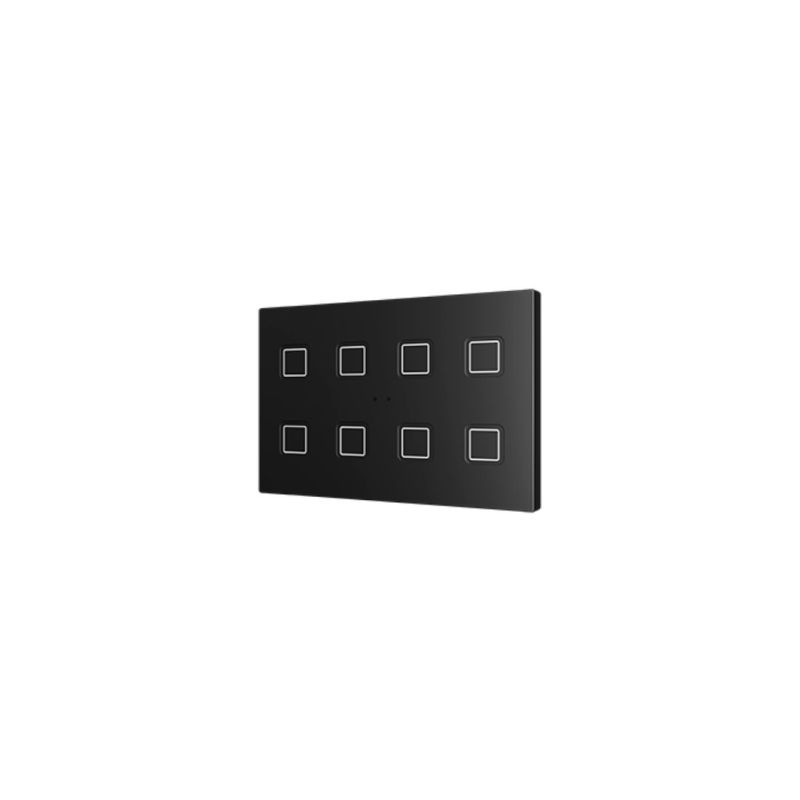

ZENNIO ZVITXLX8A TECLA XL 8-key backlit capacitive touch switch, black

The ZENNIO ZVITXLX8A capacitive switch represents an innovative and customizable solution for the control of domestic and commercial environments. This device is part of the Tecla XL family and offers 8 configurable buttons, each with backlit icons that adapt to the ambient light thanks to the integrated proximity sensor.

Key Features

• Polycarbonate body with flat design and 9 mm thickness.
• 8 configurable buttons with backlit icons that adjust the brightness based on the user's presence and the ambient brightness.
• Proximity sensor for activating and adjusting the brightness of the icons.
• Internal temperature probe and thermostat for room temperature control.
• 2 analog-digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.

Installation and Compatibility

The ZVITXLX8A switch is designed to be installed in European, Italian, Australian, American and British standard built-in boxes.

personalisation

You can create unique compositions using personalized images, icons, texts or logos through the Touch-MyDesign online application. Available models include standard versions in white, black, silver and customized.

Power supply and connections

The power supply is via the KNX bus, and the connections are made through the KNX bus and the configurable inputs.
