Alarm / Intrusion PSTN / GSM / GPRS 3G / 4G Modules

TCP/IP communication module on bus for INTEGRA control panels for mobile apps and remote management

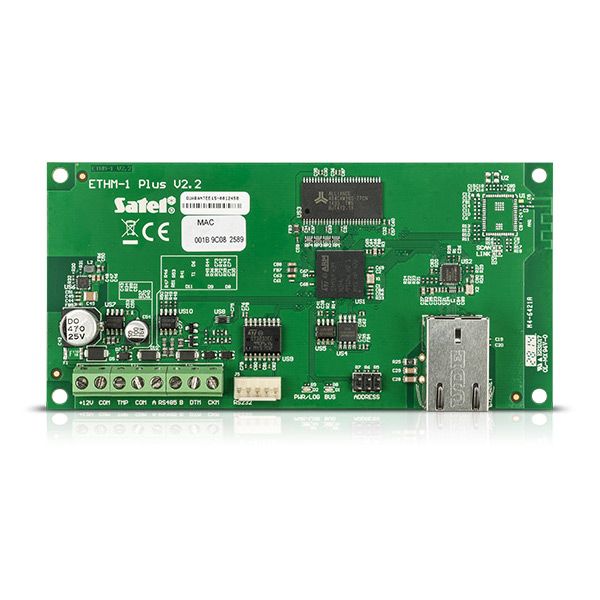

SATEL ETHM-1 Plus TCP/IP communication module on bus for INTEGRA control panels for mobile apps and remote management

MT Code: SAT_ETHM-1 PLUS
Manufacturer Code: ETHM-1 Plus
Brand: SATEL

TCP/IP communication module on bus for INTEGRA control panels for mobile apps and remote management. Open protocol for integration with third-party gateways

The ETHM-1 Plus communication module offers the possibility of using TCP/IP communication in the INTEGRA and VERSA 5/10/15 control panels. It makes it possible to transmit information on the control panel events to the security company in proprietary SATEL and SIA-IP protocols, as well as remote programming through the DLOADX software. Finally, ETHM-1 Plus allows you to use the Ethernet channel to manage free mobile applications for Android and iOS.

Technical features:

collaborates with INTEGRA and VERSA control units
TCP/IP surveillance
possibility of being used with the INT-GSM module (ETHM-1 Plus version 2.05 or higher):
Dual Path Reporting, compliant with EN 50136
backup communication path
programming via DLOADX
surveillance of the INTEGRA system via GUARDX
management of the INTEGRA system from web browser
management of the system from the mobile phone via the application: INTEGRA CONTROL, VERSA CONTROL
encrypted data transmission
management of automatic configuration of DHCP addresses
Open-source TCP/IP communication protocol for integration with other systems
