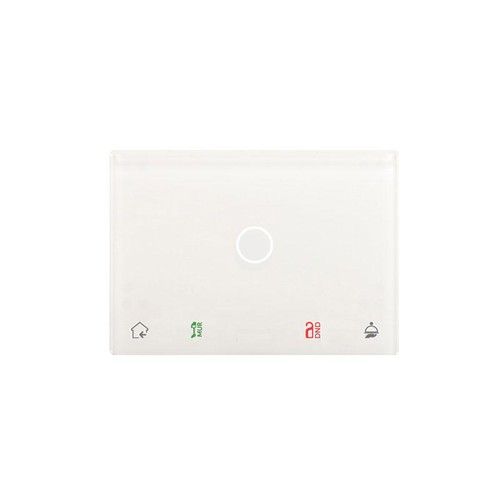

EELECTRON TR22D01KNX-1 SYNCHRONICITY 13.5Mhz TRANSPONDER READER - WHITE

<p The EELECTRON TR22D01KNX-1 product is a KNX® transponder reader designed for access control and integration within home and commercial automation systems.

Key Features

<p This device uses RFID — MIFARE® technology for access control management, ensuring reliable and secure card reading.

Installation and Compatibility

<p The TR22D01KNX-1 reader can be installed on boxes with 2 or 3 modules, compatible with the main standards (Italian, German, English, etc.).

Reading Functionality

<p The transponder is read by placing the card in front of the reader, at a maximum distance of 30 mm. The integrated RGB LED bar indicates that the card has been recognized and shows different colors that can be configured to report states or anomalies, such as:

• Recognized card (welcome): default color Green
• Incorrect system code: default color Orange
• Card ID not recognized: default color Red

Viewing and Reporting

<p The device includes an RGB LED bar on the front side for displaying the states or other quantities available on the KNX bus. In addition, it is equipped with an activatable buzzer with an ETS parameter for the sound notification of anomalies.

Covers and Customizations

<p Glass covers are available in different ranges, including RGB LINE or RGB Double Glass versions, with the possibility of customizing icons and logos through backlighting.

Power supply and connections

<p The device is powered by the EIB/KNX bus with a voltage between 21 and 32 Vdc. The digital inputs are designed for potential-free contacts, with a maximum connection cable length of ≤ 10 m (intertwined).
