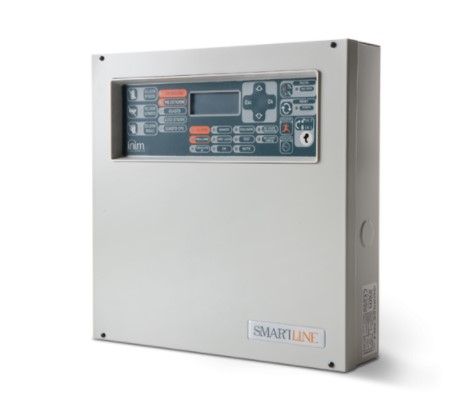

INIM FIRE SmartLine020-4EXT 1-channel extinguishing unit equipped with 4 conventional zones expandable to 20

Control unit capable of managing 4 conventional detection zones (expandable to 20) and 1 shutdown channel. Possibility to connect, via RS485, the shutdown unit to the SMARTLOOP series detection panels. 1.4Ah Switching Power Supply. Max 2 12Vcc @17Ah batteries. CPR EN54pt2-4 and EN12094 IMQ certification

The SmartLine020-4EXT fire extinguisher is based on the SmartLine020-4 conventional 4-zone fire detection unit. The control unit offers 1 SmartletLoose/ONE extinction channel and is able to offer all the functions of the conventional SmartLine020-4 control unit. The SmartLine020-4EXT extinguishing control unit can be interfaced with the SmartLoop series addressed analog control panels to provide them with the necessary extinguishing functions. The interface takes place through the RS485 connection that the extinguishing unit is equipped with. It will thus be possible to program the SmartLine020-4Ext extinguishing control unit to activate its functions both based on local information (conventional zones, extinction terminals, stop extinction terminals, etc.) and on the remote information coming from the SmartLoop control unit.
