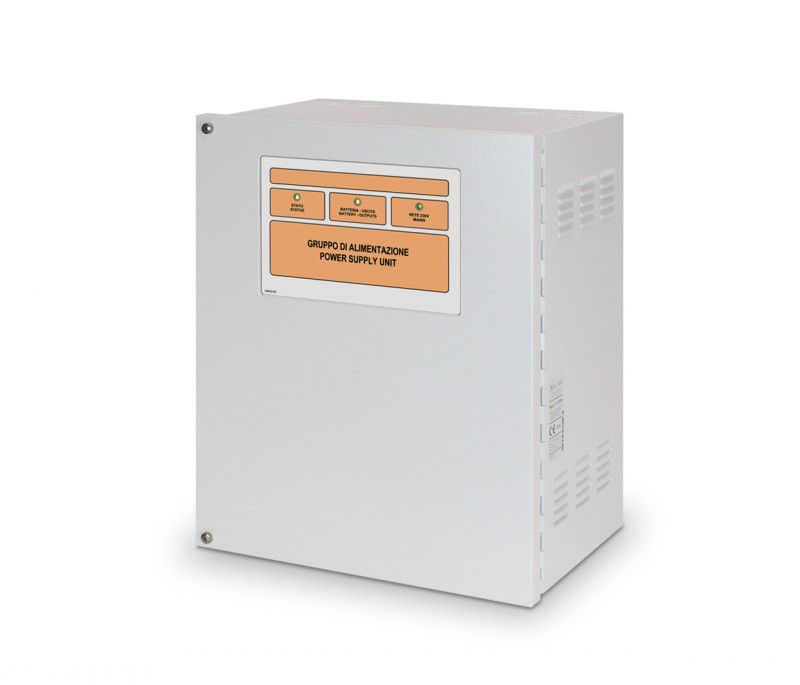

ELMO C11RS Supervised power supply unit with RS-485 ULTRABUS interface and galvanic isolation

Supervised power supply unit with RS-485 ULTRABUS interface and galvanic isolation

C11RS is a switching power supply with RS485 interface that can deliver up to a maximum of 6.25 A. It is compatible with the EL.MO. TITANIA, PROXIMA, VIDOMO2K and PREGIO series control units. C11RS can be configured and managed via PC with the BrowserOne software; in this way, the installer can remotely control the status of the power supply, the power state of the 5 outlets and the siren charging output, the charging status of the buffer battery and the event history. In addition, C11RS also performs the function of a serial line repeater as it repeats, regenerates and galvanically isolates the serial line. The metal box can accommodate a battery of up to 40 Ah and is equipped with Tamper protection against opening and removal. It is certified IMQ-Safety Systems EN50131-6, EN50131-1, grade 3, environmental class II
