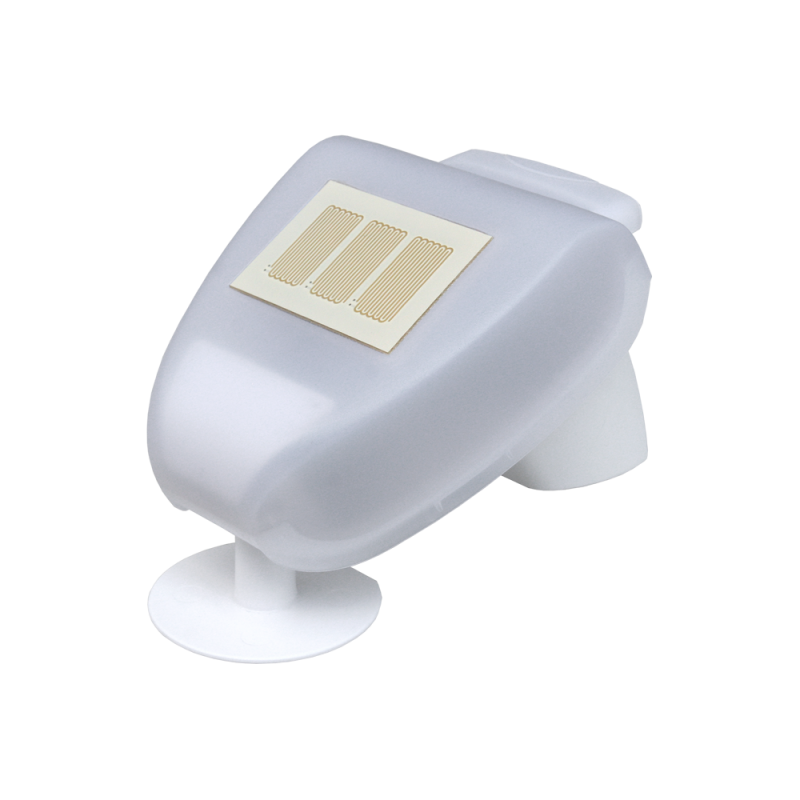

ELSNER 3090 Suntracer KNX-GPS light KNX Weather Station 230 V AC - GPS receiver - 5 shades

MT Code: ELS_3090
Manufacturer Code: 3090
Brand: ELSNER

Elsner's Suntracer KNX 3090 is a complete weather station designed to record a wide range of environmental parameters, making it an ideal choice for professional applications in the field of building automation and climate management.

Key Features

This device is capable of measuring and recording temperature, wind, brightness, precipitation and DCF77 signals, with the ability to calculate the position of the Sun.

Housing and Mounting

The weather station is made of a plastic housing, available in white or translucent. It can be mounted both on the wall and on poles, offering flexibility in different applications.

The dimensions of the unit are 96mm x 77mm x 118mm, with a total weight of about 170 grams.

Protection Class and Environmental Tolerances

The Suntracer KNX 3090 has an IP44 protection class, ensuring adequate protection against dust and water infiltration. The unit can operate in a temperature range between -30°C and +70°C and in a relative humidity of 5% to 95% (non-condensing).

Sensor and Measurements

Temperature: The station can measure the temperature in a range from -30°C to +80°C.
Wind: The wind sensor measures speeds up to 35 m/s.
Brightness: The luminosity measurement ranges from 0 to 150,000 lux.
Precipitation: The device includes a sensor for detecting rainfall.

Food and Consumption

The weather station is powered by a voltage of 20-30V DC SELV, with a maximum consumption of 110mA at 24V DC. The connection is via push-in spring terminals with a conductor diameter of 0.2 to 1.0 mm².

KNX interface

The KNX 3090 Suntracer uses the TP1-256 medium and supports up to 254 group addresses and 255 assignments. The configuration takes place in S-Mode mode.

The device has a very low current consumption, less than 5mA, and takes about 5 seconds to receive data after the bus voltage is restored.
