ELSNER 10150 Solexa II Set - White/aluminum remote control (Display and Weather Station)

The ELSNER 10150 set, called Solexa II, is a smart home control solution designed to efficiently and automatically manage various aspects of home management, such as curtains, blinds, heating and lighting.

Components of the Set

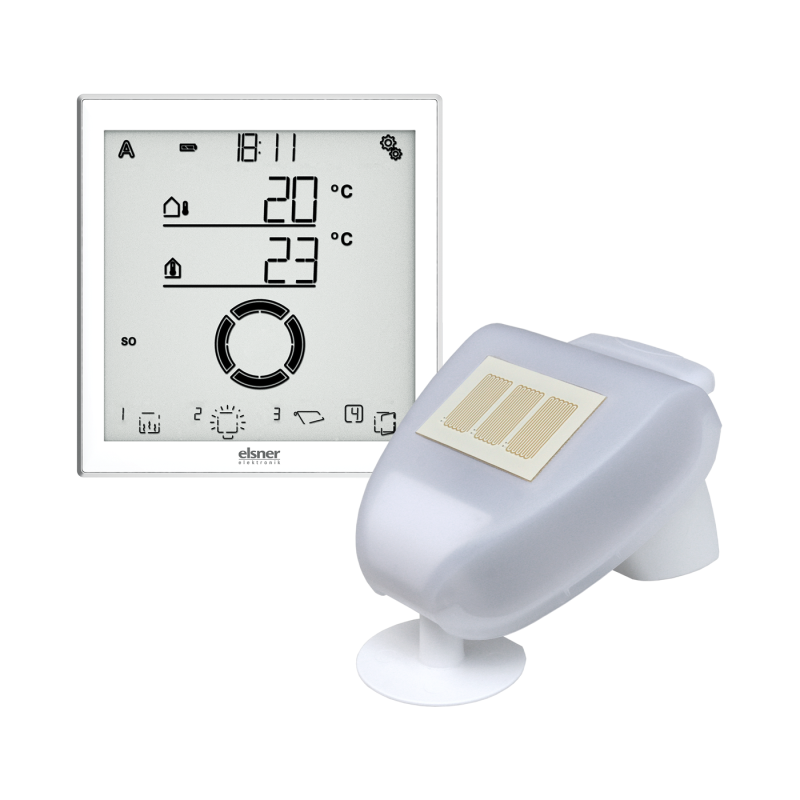

The set includes a Solexa II display and a wireless weather station.

Solexa II display

The display is made of plastic with a white and aluminum finish. Its dimensions are 107 mm x 112 mm x 14 mm, with a weight of about 170 g. The environmental protection is IP20, with an operating temperature between 0°C and +45°C and a non-condensing relative humidity between 5% and 95%. The display has a visible diagonal of 126 mm and can be powered via a 3.8 V DC battery or via a 5V/400 mA USB power unit.

Weather Station

<p-The weather station is also made of plastic, with a white and translucent color. It can be mounted on a wall or on a pole, with dimensions of 96 mm x 77 mm x 118 mm and a weight of about 260 g. The environmental protection is IP44, with an operating temperature between -30°C and +50°C. The weather station is powered by a 230 V AC/50 Hz power unit, with a power consumption of about 5 W.

Functionality and Sensors

The Solexa II set allows automatic control of curtains, blinds and heating based on weather conditions and indoor temperature. The weather station measures the outside temperature (-40°C to +80°C), wind speed (0-35 m/s) and brightness (0-150,000 Lux).

Control and Automation

The system can be integrated with radio modules for controlling the motors of blinds, awnings and blinds. In addition, it supports light control functions based on brightness and heating through specific modules. It is also possible to control window ventilation based on CO2 concentration, temperature and humidity.

Connectivity and Power

• The weather station communicates with the display via a radio frequency of 868.2 MHz.
• The display can be powered by a battery or a USB power unit.
• The weather station requires a 230 V AC/50 Hz power supply.

Installation and Use

The installation of the Solexa II set requires the mounting of the display and the weather station, which can be done on a wall or on a pole. The system is designed to be easily configured and used, allowing you to set up various smart home functions directly from the control panel.
