ELSNER 10131 Solexa 230 V- pearlescent dark gray brush-finished Shading Control

ELSNER 10131 Solexa 230 V- pearlescent dark gray brush-finished Shading Control

MT Code
ELS_10131
Manufacturer Code
10131
Brand
ELSNER
extra sconto di benvenuto
Description

The ELSNER 10131 shading control system, called Solexa 230 V, is designed for the automatic control of awnings or blinds based on light intensity and ambient temperature.

Key Features

This system ensures the automatic protection of external shading from rain, wind and frost. The alarm functions for these weather conditions can be deactivated individually.

Control functions

The system allows you to set customized shading positions if the automatic system does not completely close the curtain or shutter. For shutters, it is possible to program an additional opening angle of the slats (reversing).

A group control relay allows multiple motors to be controlled simultaneously.

Connectivity and Installation

The motor to be controlled is connected directly to the weather station, minimizing the wiring effort. The weather station and the battery control unit exchange data and commands via radio, without the need for cables for the power supply or for control data inside the building. This makes it ideal for retrofitting.

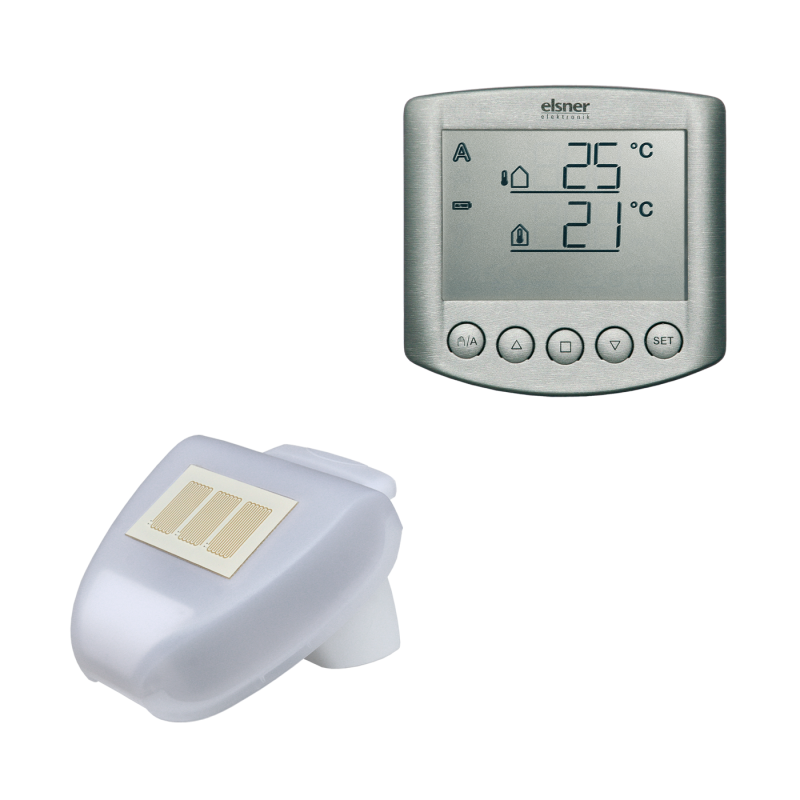

Weather Station

<p-The weather station is made of plastic, available in white/transparent color, and can be mounted on a wall or pole. It has an IP44 degree of protection and dimensions of 96mm x 77mm x 118mm, with a total weight of about 260g.

It measures outside temperature (-40°C to +80°C), wind speed (0-35 m/s) and brightness (0-150,000 lux).

Control Unit

The control unit has a partially lacquered plastic case, available in brush-finished dark gray pearl color. It has an IP20 degree of protection and dimensions of 103mm x 98mm x 28mm, with a total weight of about 170g, including batteries.

It works with 2 rechargeable 1.5V or 1.2V AA/Mignon/LR6 batteries and operates on the 868.2 MHz radio frequency.

Sensors and Operating Environment
  • Ambient temperature: 0°C to +45°C
  • Non-condensing relative humidity (RH): 5-80%
  • Storage temperature: -10°C to +50°C
  • Overvoltage category: III
  • Protection class: II
  • Pollution degree: 2
Data Sheet
Codice Produttore 10131
Brand ELSNER
Download
