ELSNER 10130 Solexa 230 V- brushed aluminum Shading Control finish

MT Code: ELS_10130
Manufacturer Code: 10130
Brand: ELSNER

ELSNER 10130 Product Description

The ELSNER Solexa 230V shading control system, model 10130, is designed for automatic control of awnings or blinds, ensuring comfortable manual operation. This model is available with a brushed aluminum finish.

General Characteristics

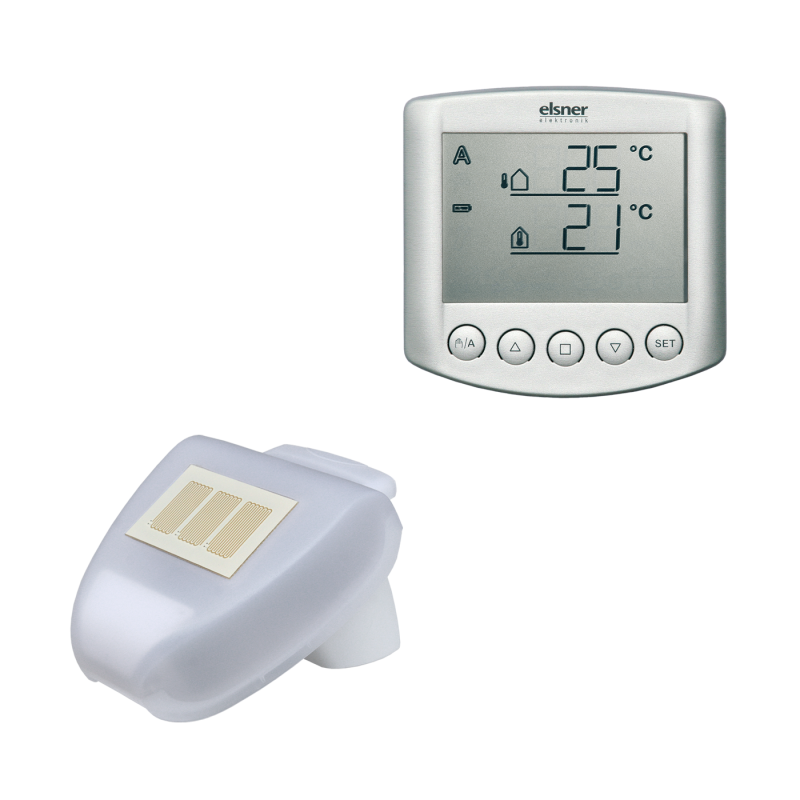

The Solexa 230V system includes a control unit and a weather station. The control unit has a partially lacquered plastic case, with dimensions of 103mm x 98mm x 28mm and a total weight of about 170g, including batteries. The weather station, on the other hand, is made of plastic, with dimensions of 96mm x 77mm x 118mm and a weight of about 260g.

Control Unit

Case: Partially lacquered plastic material
Color: Brushed aluminum
Degree of protection: IP20
Ambient temperature: 0°C... +45°C
Ambient humidity (RH): 5%... 80% (non-condensing)
Power supply: 2 1.5V batteries (AA/Mignon/LR6) or 2 rechargeable 1.2V batteries (AA/Mignon/LR6)

Weather Station

Case: Plastic
Color: White/translucent
Mounting: Wall or pole
Degree of protection: IP44
Ambient temperature: -30°C... +50°C
Sensors:
- Heated rain sensor (about 1.2 W): It avoids false signals due to fog or dew and dries quickly after the rain ends.
- Wind sensor: It measures wind force electronically, ensuring a silent and reliable measurement even in hail, snow and sub-zero temperatures.
- Brightness sensor: Measures brightness from 0 to 150,000 lux.

Automatic functions

The Solexa 230V system automatically protects awnings or blinds from rain, wind and frost. These alarm functions can be deactivated individually. Custom shading positions can be set if the curtain or shutter should not be completely closed by the automatic system. For shutters, you can program an additional slats opening angle.

Group Control

The system offers a group control relay that allows the simultaneous control of multiple motors, minimizing wiring effort. The weather station and the battery-powered control unit exchange data and commands via radio, without the need for cables for power supply or data inside the building.
