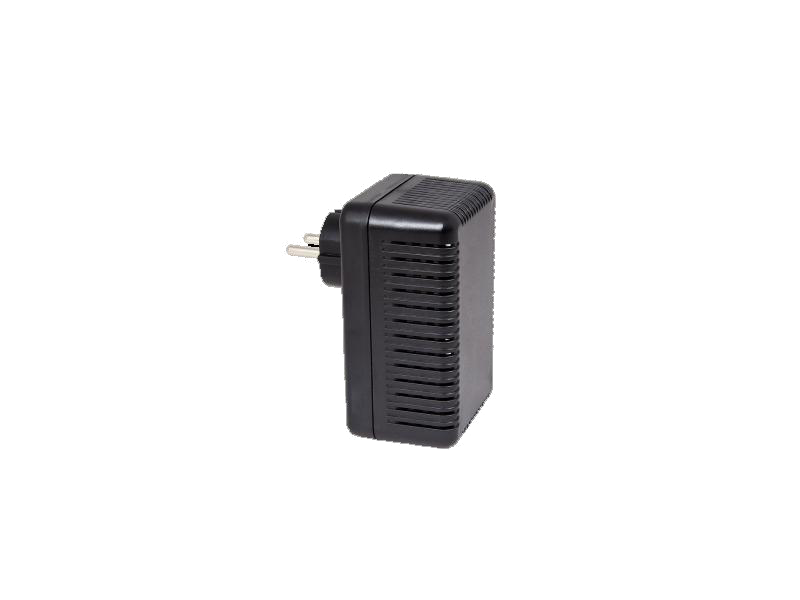

ELSNER 10154 SOL Wi-Fi interface for Solexa II

SOL Wi-Fi interface for Solexa II

The SOL Wi-Fi interface, ELSNER code 10154, is designed to connect the Solexa II building control system with the Solexa II mobile application. This interface allows you to manage and monitor the building control system directly from your mobile device.

Key Features

• Wi-Fi connectivity for integration with the Solexa II mobile application.
• It allows the remote management of devices and equipment connected to the Solexa II system.
• It supports automatic control based on time, indoor temperature, outdoor temperature, brightness, position of the sun, wind speed, and precipitation.

Technical Specifications

• Radio frequency: 868.2 MHz.
• Power supply: USB power supply unit 5V/400 mA.
• Operating environment: temperature 0... +45°C, non-condensing relative humidity (RH) 5..95%.
• Storage temperature: -10... +50°C.
• Overvoltage category: III.
• Protection class: II.
• Degree of pollution: 2.

Integration with the Solexa II System

The SOL interface integrates perfectly with the display and weather station of the Solexa II system, allowing complete and customizable control of the connected equipment and devices. The weather station, with an IP44 degree of protection, can be mounted on a wall or on a pole and includes sensors for measuring temperature, brightness, wind speed and precipitation.

Control functions

• Automatic control based on weather and time conditions.
• Manual management of equipment through the mobile application.
• Visualization of weather data and environmental conditions in real time.
