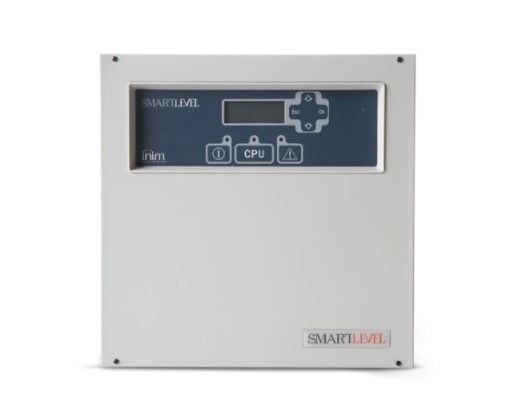

INIM FIRE SPS24060G 60W 27-6V Smart Power Station

INIM FIRE SPS24060G 60W 27-6V Smart Power Station

MT Code
INM_SPS24060G
Manufacturer Code
SPS24060G
Brand
INIM FIRE
INIM FIRE
extra sconto di benvenuto
Description

Smart power station (60W) 27-6V at 1-5A + 0-6A for battery charging. RS485 bus connection or stand-alone mode.. LCD display Metal enclosure for housing up to two batteries from 12Vcc to 7Ah. 3 outputs protected by an electronic fuse. CPR EN54pt4 IMQ and EN12101pt10 certification.

1.5 A power station with LCD control display where it is possible to consult the event log or view the details of any faults (dead batteries, lack of network, dispersion to the ground, etc.) and the current absorption of each output; 3 individually protected outputs with a current limitation of 4A, which can be connected to the RS485 bus of the fire detection panels. The SPS24060x versions are capable of providing up to 1.5 A at 27.6 V and can accommodate two 12V — 7Ah batteries. LCD display RS485 BUS connection. Internal switching power module from 1.5 A to 27.6 V. Housing for two 7Ah, 12V batteries. Dimensions (HxWxD): 325 x 325 x 80 mm. Weight (without batteries): 3 kg.

Data Sheet
Codice a barre 8050612423102
Codice Produttore SPS24060G
Brand INIM FIRE
