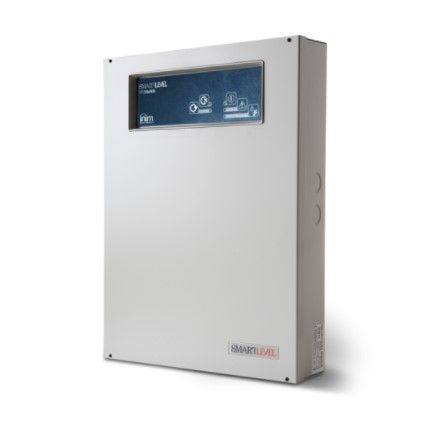

INIM FIRE SPS24160S 120W Smart Power Station
- MT Code
- INM_SPS24160S
- Manufacturer Code
- SPS24160S
- Brand
- INIM FIRE
![INIM FIRE INIM FIRE](https://images.ctfassets.net/g6z2so3d6429/11lARbhnDmzNLV2rCxcRrj/aa4995699b5a6448c5acfb05e05e8a32/INIM_INCENDIO_160X160.jpg?w=260&h=260&fm=webp&q=80)
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Smart power station (120W) 27-6Vcc 4A + 1-2A for battery charging. Connection on ENEA loop or stand-alone mode. Signal LED. 1 output. Metal enclosure for housing up to two batteries from 12Vcc to 17Ah. CPR EN54pt4 IMQ and EN12101pt10 certification.
4 A power station with status lights, fault output, network failure fault output, single power output. It can be used independently or connected directly to the Loop of the addressed control panels (INIM protocol). Thanks to its loop interface, it is recognized by the control unit as a power station and is completely automatically supervised, bringing all the signals back to the control unit. the SPS24160x versions are capable of providing up to 4 A at 27.6 V and can accommodate two 12V —17Ah batteries. Connection on Detection Loop. 4 A 27.6 V internal switching power supply module. Housing for two 17Ah, 12V batteries. Dimensions (HxWxD): 497 x 380 x 87 mm. Weight (without batteries): 6 kg.
Codice a barre | 8050612423058 |
---|---|
Codice Produttore | SPS24160S |
Brand | INIM FIRE |
SPS24 datasheet 110 I0
|
891.3 kB |
