ARCUS-EDS 30511050 SK10-TC-RPTF1

ARCUS-EDS 30511050 Product Description

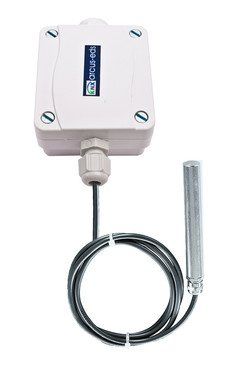

The ARCUS-EDS 30511050 product, called SK10-TC-RPTF1, is a temperature sensor designed to be integrated into KNX home automation systems. This device is ideal for temperature sensing applications in various environments.

Technical characteristics

The SK10-TC-RPTF1 temperature sensor offers a series of technical features that make it suitable for different needs:

• Temperature Range: The sensor is available with different temperature range options, including -35°C and +105°C for the PVC model, -50°C and +180°C for the silicon model and -50°C and +250°C for the PTFE model.
• Resolution: The sensor resolution is 0.02°C, ensuring high measurement accuracy.
• Accuracy: The accuracy of the sensor is class B, with an error of ± (0.3°C + 0.005*T).
• Supply Voltage: The sensor works with the KNX bus voltage, between 21 and 32 VDC.
• Power Consumption: The power consumption is about 240 mW at 24 VDC.

Environmental Conditions

The KNX sensor module is designed to operate under a wide range of environmental conditions:

• Operating Temperature: -25°C and +80°C.
• Storage Temperature: -25°C and +80°C.
• Humidity: 0% and 100% non-condensing relative humidity.

Control Functionality

The sensor includes integrated control capabilities, allowing you to set setpoint temperatures for different modes, such as Comfort, Standby, Economy and Protection. These features are especially useful for heating and cooling applications [2>.

Integration with the KNX System

The sensor is equipped with an integrated bus coupler and does not require an auxiliary power supply. The configuration and start-up of the sensor can be carried out using the ETS (Engineering Tool Software) software version 4 or higher, specifically with the HLK305 profile.
