ARCUS-EDS 30511035 SK10-TC-ETF7, 150mm

ARCUS-EDS 30511035 Product Description

The product ARCUS-EDS 30511035, code SK10-TC-ETF7, is a KNX temperature sensor designed for temperature sensing applications in various environments. This sensor is particularly suitable for installation in air conditioning and heating systems.

Technical characteristics

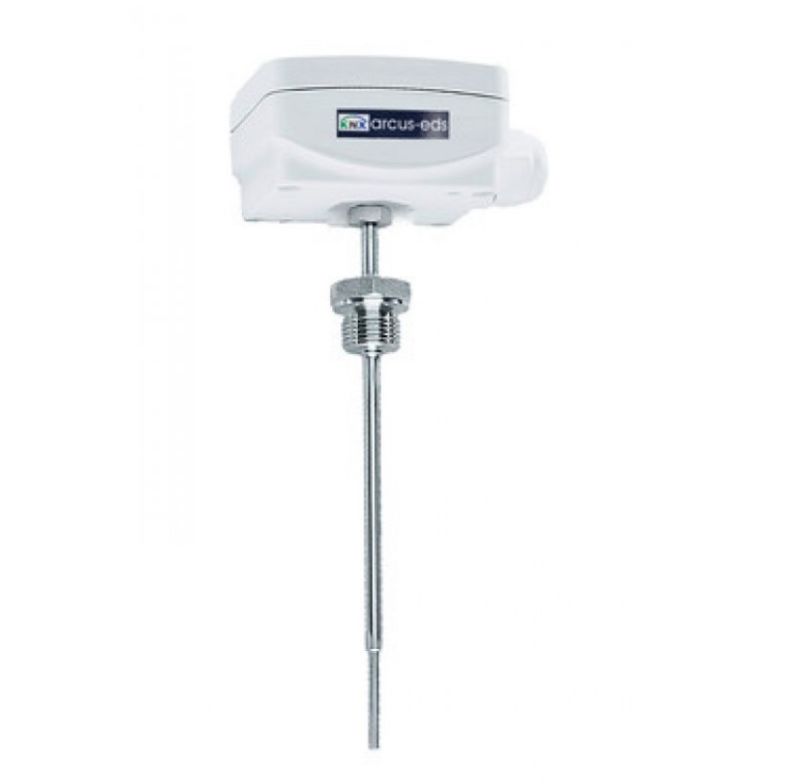

The SK10-TC-ETF7 sensor is an immersion screw sensor, available in different lengths, including the 150mm version.

Temperature Range

• -35°C up to +105°C for standard versions
• -50°C up to +180°C for some specific versions

Resolution and Accuracy

• 0.02°C resolution
• Class B accuracy, ± (0.3°C + 0.005*T)

Food and Consumption

• Power supply via KNX bus with a voltage between 21 and 32 VDC
• Approximate power consumption of 240 mW at 24 VDC

Operating Environment

• KNX module operating temperature: -25°C to +80°C
• KNX module storage temperature: -25°C to +80°C
• Ambient humidity: 0 to 100% R.h non-condensing

Protection and Materials

• Protection class IP54/65
• Cover available in materials such as PVC and Silicon

Integration and Installation

• Integrated control and integrated bus coupler
• No need for auxiliary power
• Compatible with ETS Version 4 or higher
• KNX connection points with 2-pin terminals (red and black)

This sensor is ideal for applications that require accurate and reliable temperature measurement in a variety of environments, including those exposed to extreme weather conditions.
