ARCUS-EDS 30511031 SK10-TC-ETF3 250mm

ARCUS-EDS 30511031 Product Description

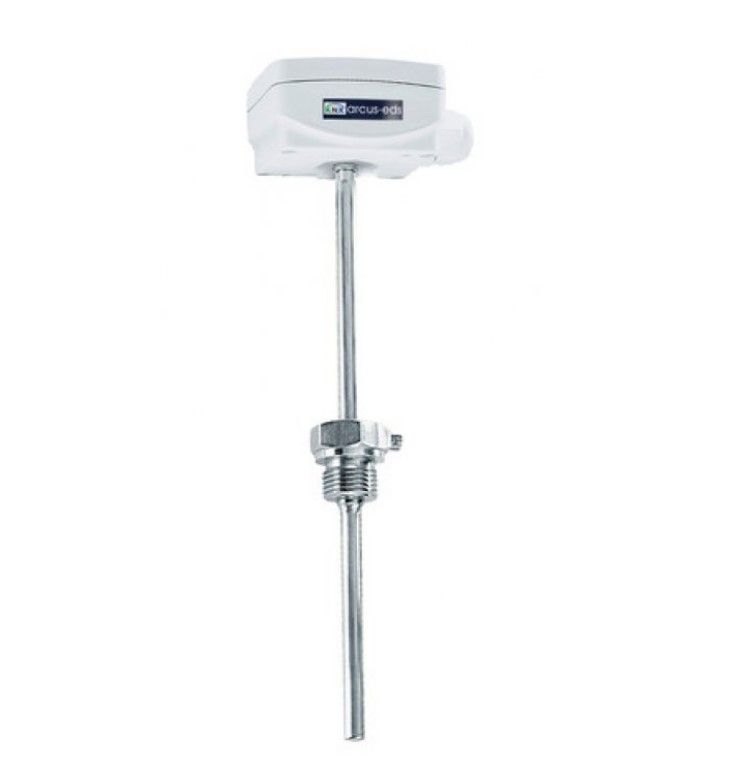

The ARCUS-EDS 30511031 temperature sensor, model SK10-TC-ETF3, is a device designed for integration into KNX systems. This sensor is ideal for monitoring temperature in various environments, including ventilation and heating systems.

Technical characteristics

• Temperature Range: -35°C to +105°C (silicone) and -50°C to +180°C (PVC)
• Resolution: 0.02°C
• Accuracy: Class B, ± (0.3°C + 0.005*T)
• Operating Voltage: 21-32 VDC (KNX bus voltage)
• Power Consumption: Approximately 240 mW at 24 VDC

Environmental Conditions

• KNX Module Operating Temperature: -25°C to +80°C
• KNX Module Storage Temperature: -25°C to +80°C
• KNX Module Operating Humidity: 0-100% R.h non-condensing

Other Features

• Integrated Control: Yes
• Bus connection: Integrated Bus Coupler
• Auxiliary Power: Not Required
• Connection Points: KNX 2-pole terminals (red/black)
• Protection Class: IP54/65

This sensor is designed to be easy to install and manage, ensuring accurate temperature measurement in home and industrial automation systems.
