ARCUS-EDS 30511028 SK10-TC-ETF3 100mm

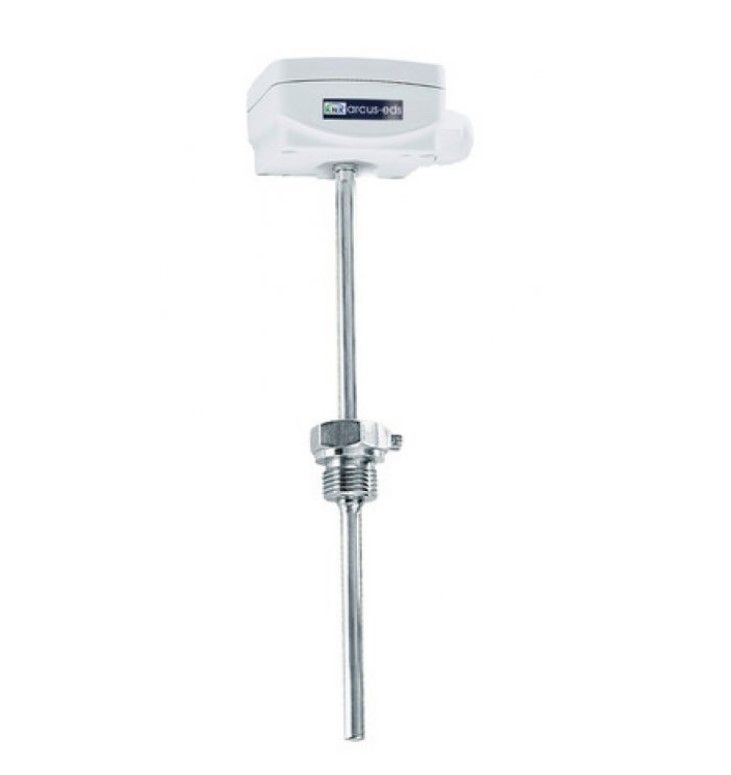

<p/the product ARCUS-EDS 30511028, code SK10-TC-ETF3 100mm, is a KNX temperature sensor designed for climate control applications in domestic and industrial automation installations.

Key Features

• The sensor is of the RTR (screw-in) type and is easily inserted into air conditioning systems.
• The measurable temperature range is from -35°C to +105°C for PVC versions and from -50°C to +180°C for silicon versions.
• The measurement resolution is 0.02°C.
• The measurement accuracy is class B, with an accuracy of ± (0.3°C+0.005*T).

Food and Consumption

• The sensor operates with a KNX supply voltage between 21 and 32 VDC.
• The power consumption is about 240 mW at 24 VDC.

Environmental Conditions

• The operating temperature of the KNX module is between -25°C and +80°C, while the storage temperature is between -25°C and +80°C.
• The operating relative humidity is between 0% and 100% without condensation.

Connections and Protection

• The sensor is equipped with an integrated bus coupler and does not require an auxiliary power supply.
• The connection points are made with 2-pin KNX terminals (red and black).
• The protection class is IP54/65.

Integration with the KNX System

• The sensor is compatible with version 4 or higher of the ETS (Engineering Tool Software) software.
