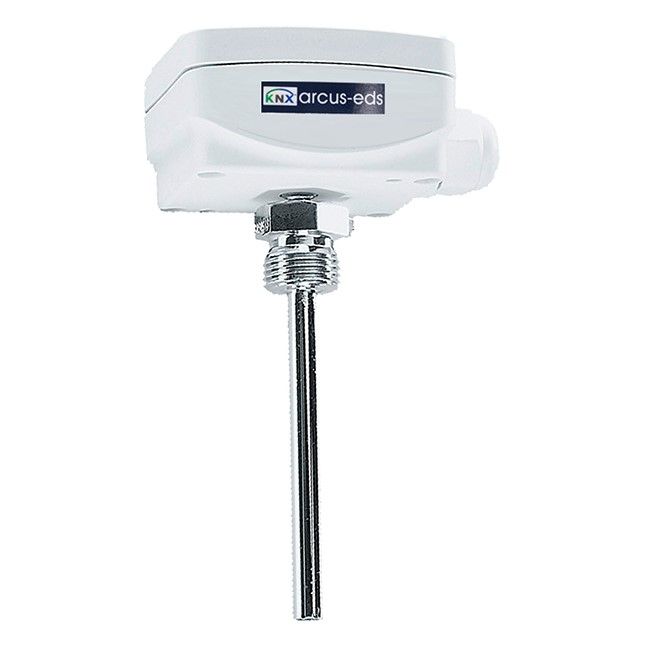

ARCUS-EDS 30511024 SK10-TC-ETF2 250mm

The product ARCUS-EDS 30511024, called SK10-TC-ETF2 250mm, is a temperature sensor compatible with KNX systems. This device is designed to measure temperature in various environments and applications.

Technical characteristics

Temperature Range

The sensor has an operating temperature range from -35°C to +105°C, with a resolution of 0.02°C. The measurement accuracy is class B, with an error of ± (0.3°C + 0.005*T) [4).

Food and Consumption

The sensor operates with a KNX bus supply voltage between 21 and 32 VDC, with an approximate power consumption of 240 mW at 24 VDC [4).

Protection and Operating Environments

The KNX sensor module has an IP54/65 protection class and can operate in a range of ambient temperatures from -25°C to +80°C, with a relative humidity of up to 100% non-condensing [4).

Connections and Integration

The sensor is equipped with 2-pin terminals (red and black) for connection to the KNX bus. It does not require an auxiliary power supply and can be started with version 4 or higher of the ETS software [4).

Dimensions and Material

The KNX module case is made of plastic, with dimensions of 72 x 64 x 40 mm [4).

Applications

The SK10-TC-ETF2 250mm sensor is ideal for installation in ducts or tight spaces, thanks to its length of 250 mm. It is used in home and industrial automation systems for temperature control in various environments, such as heating, ventilation and air conditioning systems).
