ARCUS-EDS 30801100 SK08-T8-PT100
- MT Code
- ARC_30801100
- Manufacturer Code
- 30801100
- Brand
- ARCUS-EDS

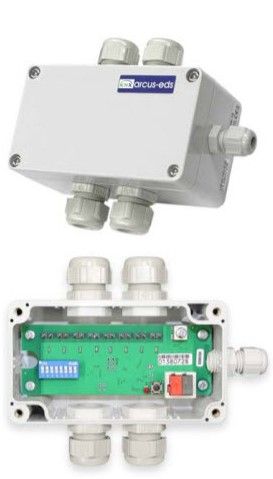

ARCUS-EDS 30801100 - KNX Measurement and Control Unit
The ARCUS-EDS 30801100 measurement and control unit is designed for temperature monitoring and control in various environments, particularly suitable for applications in heating, cooling and climate technology.
Key Features
This KNX device allows the connection of up to 8 external PT100 sensors, offering a wide range of applications for temperature measurement and control.
Temperature Range and Accuracy
The measurement unit is able to detect temperatures between -30°C and +180°C, ensuring high accuracy in measurements.
Control Technologies
The device includes two types of controllers: a two-position controller with 1-bit switching and pulse output, and a PI controller with 8-bit continuous output. These features allow for precise and flexible adjustment of temperature conditions.
Construction Features
The unit is made with an IP54/65 plastic housing, dimensions 72 x 64 x 40 mm, ensuring adequate protection from adverse environmental conditions.
Applications
- Temperature measurement and control in heating and cooling systems.
- Applications in climate and circulation technology.
- Temperature measurement in liquid or gaseous media.
| Codice a barre | 642125990035 |
|---|---|
| Codice Produttore | 30801100 |
| Brand | ARCUS-EDS |
