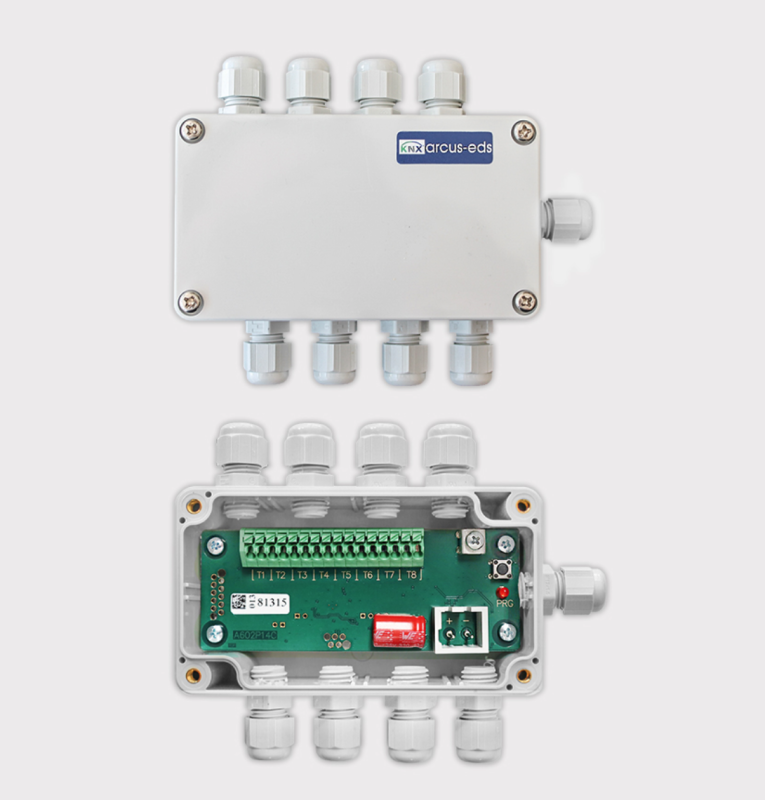

ARCUS-EDS 30805000 SK08-BFT Without Sensor

ARCUS-EDS 30805000 SK08-BFT Product Description

The ARCUS-EDS 30805000 SK08-BFT product is a temperature sensor designed for integration into the KNX automation system. This device is ideal for temperature monitoring and control applications in residential and commercial environments.

Technical characteristics

The SK08-BFT sensor operates with a KNX bus supply voltage between 21 and 32 VDC, with a power consumption of about 240 mW at 24 VDC. It does not require an auxiliary power supply and has an integrated coupler bus.

Assembly and Protection

The sensor is assembled with two screws and has a gray ABS plastic case with dimensions of 115 x 65 x 55 mm (L x W x H). The device's protection class is IP54/65, ensuring adequate protection against dust and water infiltration.

Functionality

The SK08-BFT sensor is designed for temperature monitoring and can be used in a variety of heating and cooling applications. It does not include an integrated sensor, but it can be easily connected to external sensors.

Electrical connections

• The electrical connections are made using bipolar terminals (red and black).

Integration with the KNX System

The device is designed to be started and configured using the ETS (Engineering Tool Software) software, which is the standard tool for configuring KNX systems.

This temperature sensor is a reliable and precise solution for controlling and monitoring environmental conditions, making it an essential component for any KNX automation system.
