ARCUS-EDS 65001002 SK07-Lunos-Control4-IW

The KNX-LUNOS-CONTROL4 module with article number 65001002 is designed for the control of up to 4 decentralized ventilation devices of the Lunos series through the KNX bus.

Key Features

This module allows Lunos ventilation devices to be integrated into a KNX home automation system, ensuring efficient and centralized ventilation management.

Installation and Connectivity

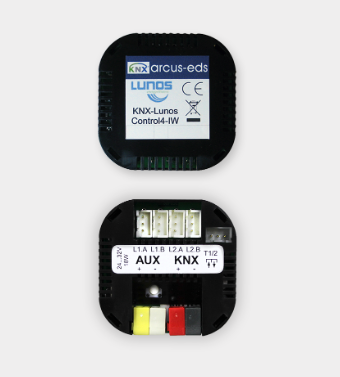

The module is designed for standard wall installation (60/68 mm) and has a black plastic housing with dimensions of 50 x 50 x 20 mm (B x H x T) and 58 mm diagonally.

The connection to the KNX bus is made through a 2-pin connector (red/black), while the auxiliary voltage can be connected through a WAGO clamping block (yellow/white) with a voltage between 24V and 32VDC and a maximum power of 20W.

Electrical Performance

The module operates with a KNX bus voltage between 21 and 32VDC, with a power consumption of about 120mW at 24VDC. The electrical efficiency of the module is 92% at maximum power.

Environmental Conditions

The module can operate in a temperature range from -5°C to +45°C and tolerates humidity up to 90% without condensation. The storage temperature ranges from -20°C to +85°C.

Control Features

The module includes an output for potential-free and debounced pushs/switches, with a current of 3mA. It is also equipped with an integrated coupler bus.

In addition, the module automatically reduces power when the module temperature exceeds 75°C.

Supported Fan Types

• NEXXT
• E² (always in combination of suction and intake)
• EGO S1 [R]
• EGO S2 [L]
• Silvento (FK, EC, 30/60/100)
• BETWEEN 15-60
• ACM-module or 0.. 12V

This module is compatible with the new ARCUS_Lunos_ex_v5 application, which includes an expansion of the list of supported fans.
