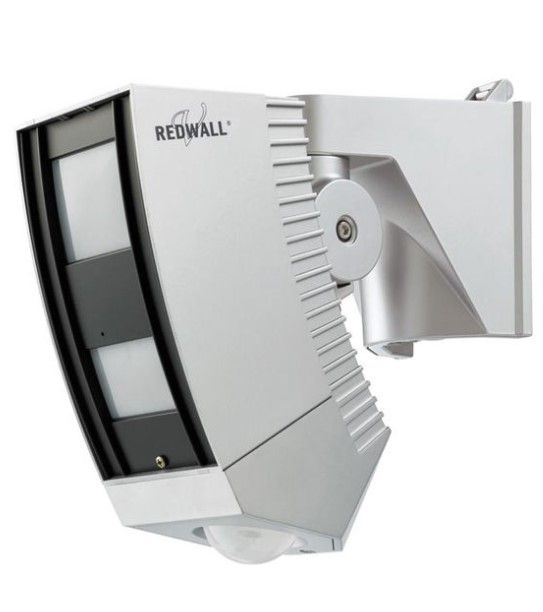

OPTEX OXZS4045IP SIP-404/5-IP Double PIR x external m 40x4

REDWALL SIP-IP-BOX is a series of outdoor PIR (passive infrared) IP/PoE long-range motion detectors, designed to work in combination with a large number of VMS (Video Management Software) platforms, with IP cameras from some manufacturers and PSIM providers. The alarm event generated by the IP sensors will trigger a reaction from the security system

The detectors of the SIP-404/5-IP line cover a detection area of 40 x 4 m, are equipped with 3 alarm outputs, 2 independent outputs for far and near areas on the main detector and an additional PIR detector with independent alarm output at the bottom of the unit to cover the sliding area (6 x 9 m detection area). The availability of multiple outputs is useful for the activation of video transmission systems, for PTZ (pan-tilt-zoom) control and for better observation of intruders passing through

How to upgrade IP CCTV systems CCTV

systems activated on an event must be able to count on accurate information and truthful findings. Although most IP cameras are equipped with video motion detection, the use of this detection method alone can prove particularly problematic in outdoor environments where constant changes in lighting and weather conditions can cause false alarms. SIP-3020/4010/404-5-IP-BOX detects movement regardless of light conditions, tracks an intruder through its three independent detection zones - far, near and swiping - and activates

Resistant to weather and vandalism

REDWALL SIP motion detectors are suitable for use in harsh outdoor environments; sensitivity can be automatically adjusted to ambient temperature and light, and the main unit is IP65 rated. SIP outdoor PIRs are vandal-proof models equipped with a polycarbonate case, anti-masking function and accelerometer to detect the intentional movement of the

Integration with VMS

The REDWALL SIP-IP-BOX series generates a unique alarm code (REC) that communicates a series of events including detection, tampering and environmental conditions to IP cameras, DVRs and VMS platforms enabled to use this code. The list of VMS platforms that have already integrated our event code includes all the main products in the sector and is constantly growing

Applications
