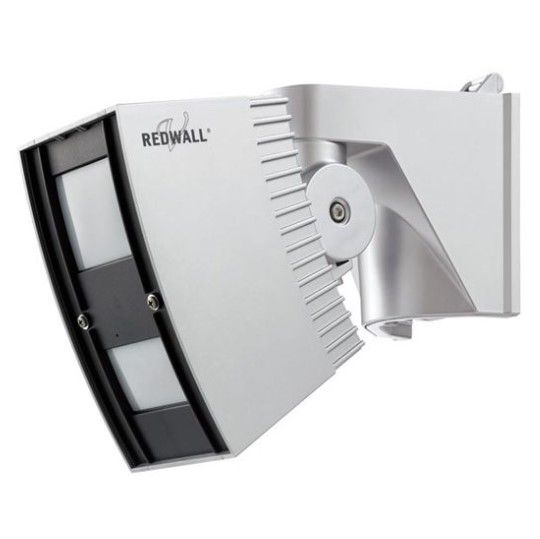

OPTEX OXZS4010IP SIP-4010-IP Double PIR for outdoor m40

SIP-4010-IP is an outdoor medium-range IP infrared sensor compliant with the PoE standard, easily integrated with video management systems (VMS) of major manufacturers, some NVRs and PSIM platforms. SIP-4010-IP covers a detection area of 40 x 10 m (length x width), includes the SIP-4010 PIR PIR, the IP/PoE encoder module (PIE-1) and an IP65 enclosure. The anti-vandal intrusion sensor is specifically designed to activate outdoor IP CCTV systems in installations that require high performance and greater accuracy and ease of use in visual checks for remote video monitoring. SIP-4010-IP is equipped with an intelligent detection system that uses environmental data such as temperature to automatically adjust sensitivity and minimize false alarms

How to upgrade IP CCTV systems CCTV

systems activated on an event must be able to count on accurate information and truthful findings. Although most IP cameras are equipped with video motion detection, the use of this detection method alone can prove particularly problematic in outdoor environments where constant changes in lighting and weather conditions can potentially cause false alarms. SIP-3020/4010/404-IP-BOX detects movement regardless of ambient and light conditions, tracks an intruder through its two independent detection zones - far and near - and activates the

Resistant to weather and vandalism

REDWALL SIP motion detectors are suitable for use in harsh outdoor environments; sensitivity can be automatically adjusted to ambient temperature and light, and the main unit is IP65 rated. SIP outdoor PIRs are vandal-proof models equipped with a polycarbonate case, anti-masking function and accelerometer to detect the intentional movement of the

Integration with VMS

The REDWALL SIP-IP-BOX series generates a unique alarm code (REC) that communicates a series of events including detection, tampering and environmental conditions to IP cameras, DVRs and VMS platforms enabled to use this code. The list of VMS platforms that have already integrated our event code includes all the main products in the sector and is constantly growing

Applications

Main features
