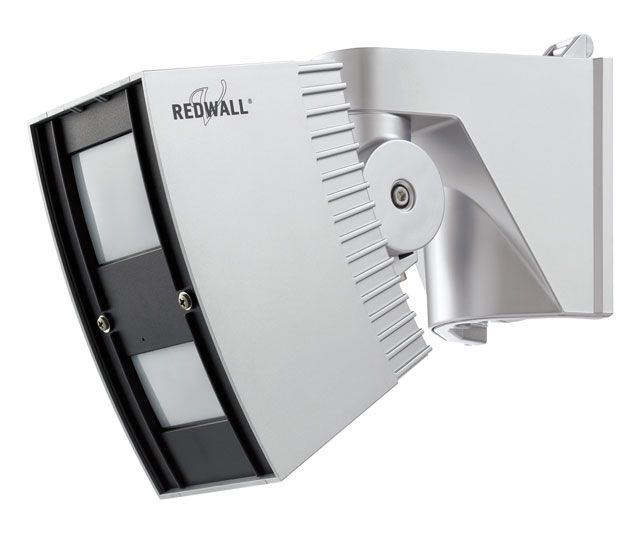

OPTEX OXZS3020W SIP-3020WF Doppio PIR per esterno m30X20

OPTEX OXZS3020W SIP-3020WF Doppio PIR per esterno m30X20

MT Code
HSA_OXZS3020W
Manufacturer Code
OXZS3020W
Brand
OPTEX
extra sconto di benvenuto
Description

SIP3020WF is a wireless intrusion sensor designed to protect temporary or remote sites such as construction sites, outdoor events or difficult to power areas. The SIP series features an intelligent detection system that monitors ambient temperature and light level and automatically adjusts sensitivity. The SIP3020 model (30 x 20 m) is ideal for protecting open spaces such as car parks, courtyards and construction sites.


Designed to activate CCTV systems

The REDWALL SIP series connects to PTZ or fixed cameras to activate the CCTV system in the event of an intrusion. The SIP-3020/404/4010WF features two independent detection zones, far and near, each with its own sensitivity setting to activate a camera preset and allow local security or remote monitoring station personnel to properly observe the problem . This wireless version model is battery powered, and can use an optional radio transmitter for installation in places where wiring is particularly challenging (transmitter and batteries are supplied separately).


Resistant to atmospheric agents and vandalism

REDWALL SIP motion detectors are suitable for use in difficult outdoor environments; sensitivity can be automatically adjusted to ambient temperature and light, and the main unit is IP65 rated. SIP outdoor PIRs are vandal-proof models equipped with a polycarbonate case, anti-masking function and accelerometer to detect intentional movement of the sensor.


Low consumption and battery powered

The sensor consumes 40 μA in standby and a maximum of 5 mA when the LED is on; the batteries used for the sensor can also power the radio transmitter, making it an ideal anti-intrusion sensor for temporary installations such as construction sites and events, as well as for areas that are difficult to wire. The housing accepts most commercially available radio transmitters.


Applications

  • Buildings
  • Access


Main features

  • Battery powered external PIR with advanced detection algorithm
  • Designed for activating CCTV/Wireless Security Systems
  • Two independent detection zones with two far/near outputs
  • Active infrared anti-masking and vandal resistance
Data Sheet
Codice Produttore OXZS3020W
Brand OPTEX
